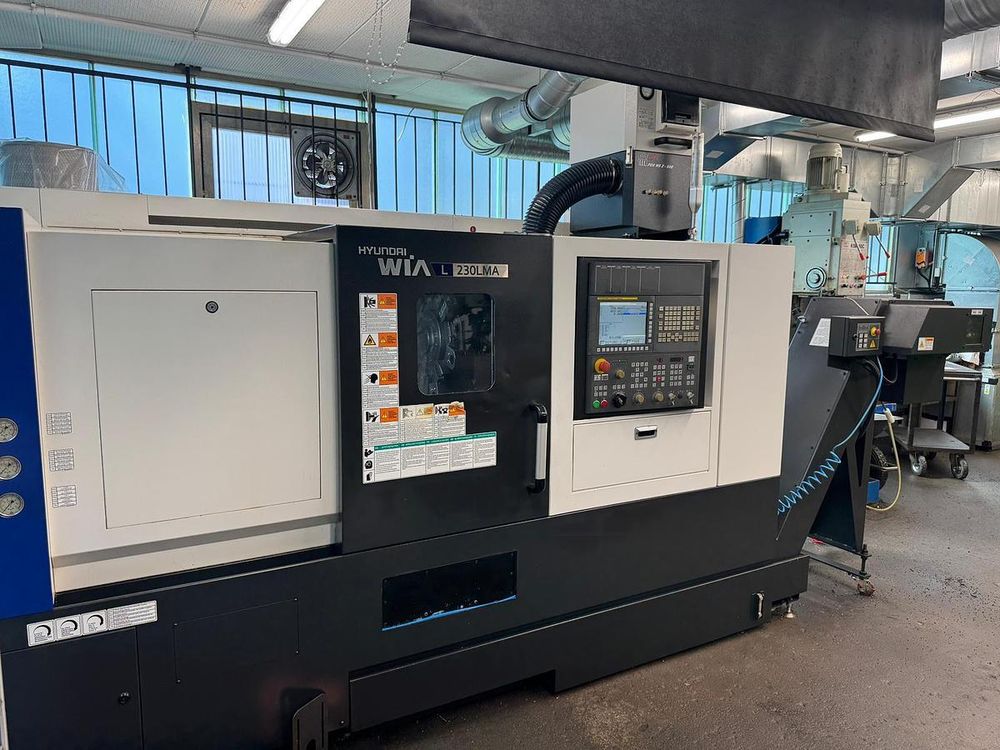

Hyundai Fanuc F0i-A 4000 rpm WIA L 230 LMA 2 Axis

X-axis travel: 220 mm
Z-axis travel: 560 mm
Rapid traverse (X/Z): 36 m/min
Control: Fanuc F0i-A
Swing diameter: 310 mm
Turning length: 521 mm
Spindle nose: A2-6
Bar capacity: 65 mm
Max spindle speed: 4000 rpm
Main spindle motor power (100/40% duty): 11 / 15 kW
Tool positions: 12
Tool holder: BMT 55 P
Driven tool speed: 5000 rpm
Driven tool motor power: 3.7 / 2.2 kW
Tailstock: MT 4
Spindle hours: 1500 h
Total power requirement: 22 kW
Machine weight: 4.6 t
Automatic measuring arm
Coolant tank 200 l
Chip conveyor
High-pressure coolant 15 bar
Parts catcher for main spindle
Bar feeder interface
Oil mist separator LNS WS 2 - 500E
