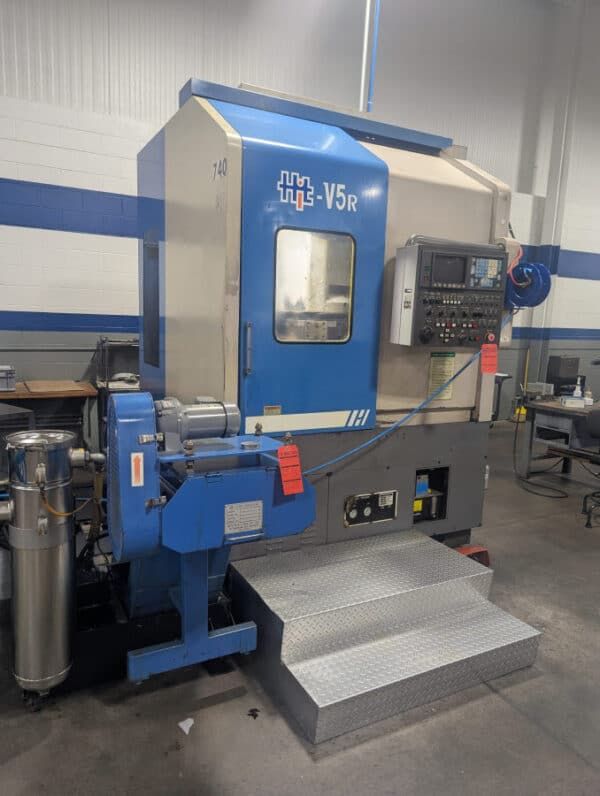

Hyundai HIT-V5R Maximum Swing: 31.5″

Ref : 2781857-3

Condition : Used

Manufacturer : Hyundai

Model : HIT-V5R

Short Description : Maximum Swing: 31.5″

Year(s) : 1999

Quantity : 1

Location : Seller or machines location:
AMERICA North (USA-Canada-Mexico)

Travel X Axis: 12.8″
Travel Z Axis: 24.6″
Rapid Traverse Rate X Axis: 787 IPM
Rapid Traverse Rate Z Axis: 709 IPM
Control: Fanuc Series 21i-T
RS232 Interface
Maximum Turning Diameter: 21.65″
Maximum Turning Length: 23.6″
Spindle Speed: 3000 RPM
Spindle Motor Power: 30 HP
Chuck Diameter: 15″
Maximum Chuck Diameter: 21″
Turret Capacity: 8 Tools
Tool Shank Size Square: 1.25″
Tool Shank Size Round: 2″
Machine Dimensions: 99″ x 73″ x 115″H
Machine Weight: 22,000 lbs
Chip Conveyor
