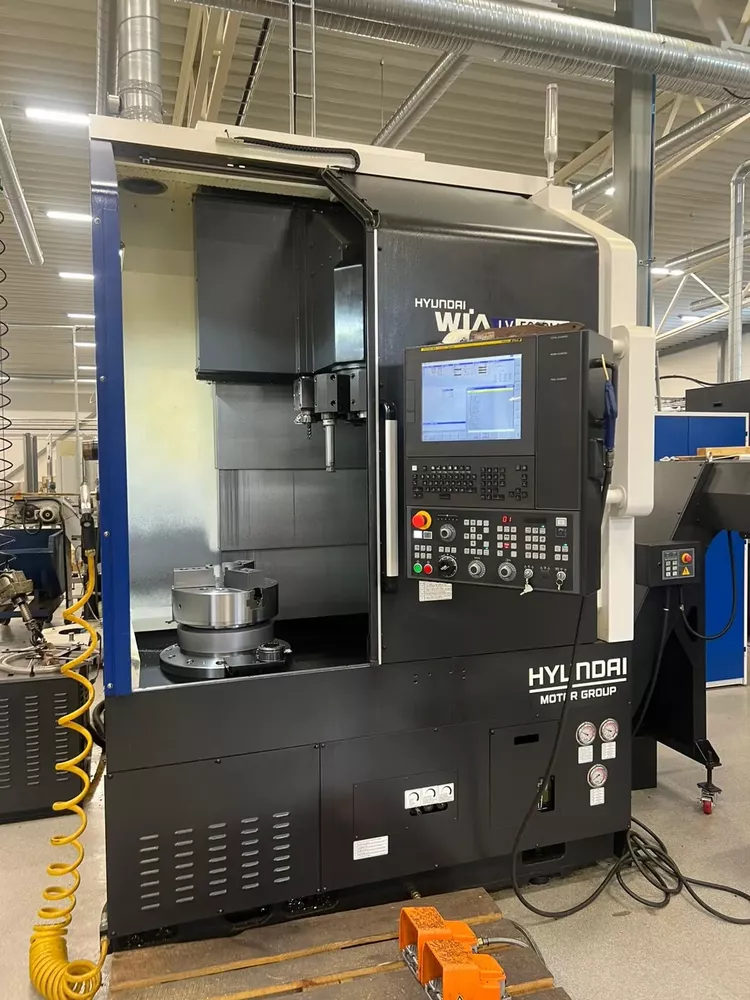

Hyundai Wia LV500RM Maximum swing diameter 760 mm
Ref :
2781939-3-MT
Condition :
Used
Manufacturer :
Hyundai
Model :
Wia LV500RM
Short Description :
Maximum swing diameter 760 mm
Year(s) :
2021
Quantity :
1
Location :
Seller or machines location:
EUROPE (Western and Northern)
EUROPE (Western and Northern)
Fanuc 0i Plus SMART GUIDE Dialog control
X/Y/Z travel information not provided
Maximum turning diameter 550 mm
Maximum turning length 600 mm
Main spindle speed 2000 rpm
Main spindle drive power 22 kW
Spindle nose A2-11
Turret type BMT75
12 tool turret stations
12 driven tool stations
Driven tool turret speed 3000 rpm
3-jaw chuck diameter 380 mm
High pressure coolant pump 20 bar
Programmable tailstock MK4
Automatic door system
Tool setter Q-Setter
Linear positioning system (LPS) chuck support
