Hyundai Wia LV 800RM Swing: 890mm

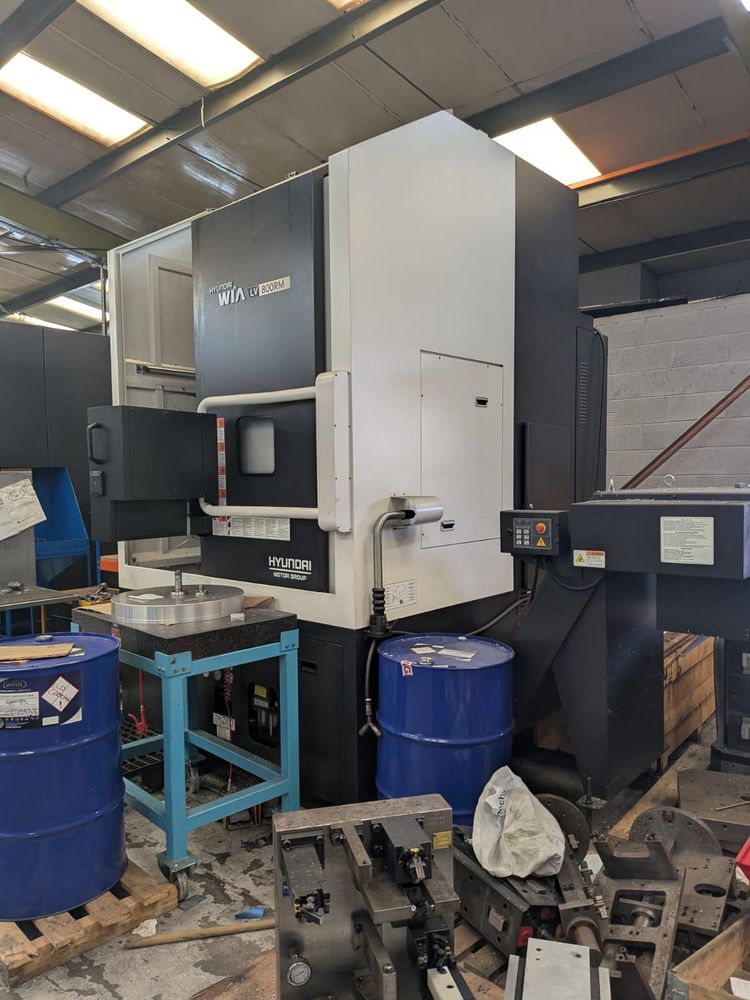

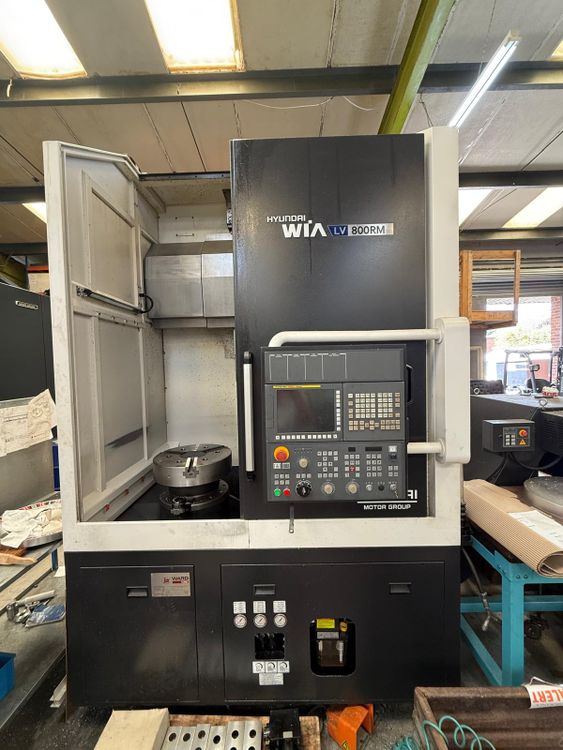

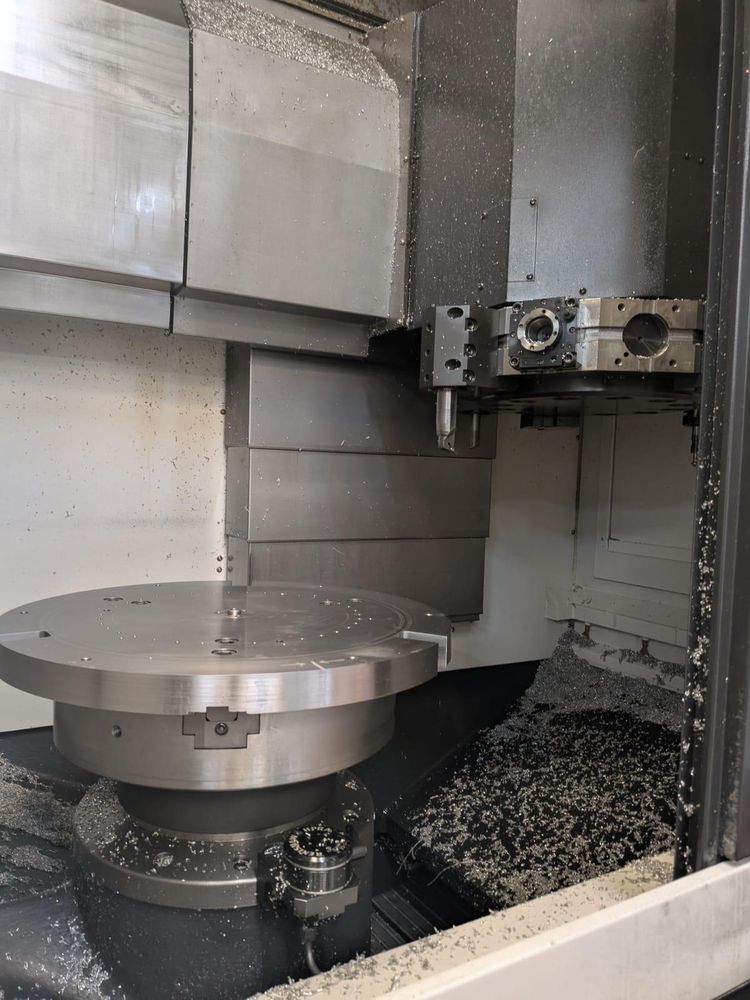

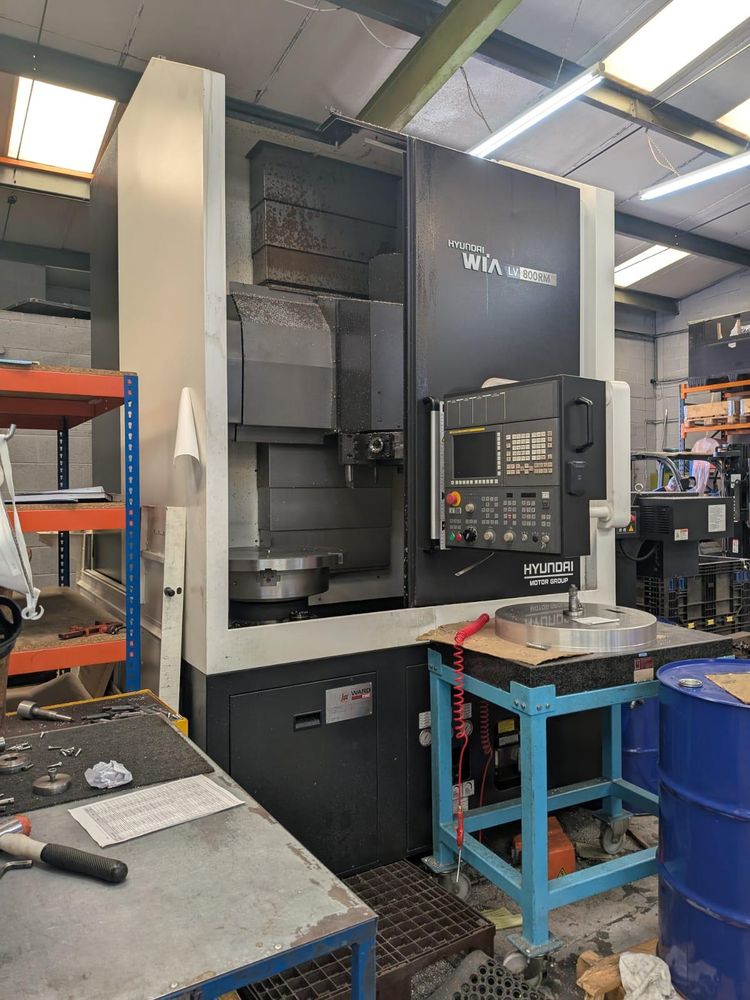

Hyundai-Wia LV800RM CNC vertical turning/borer
with C axis and Milling (2019).

Boring Bar Holder Diameter: 63mm
C axis: 0.001 degree

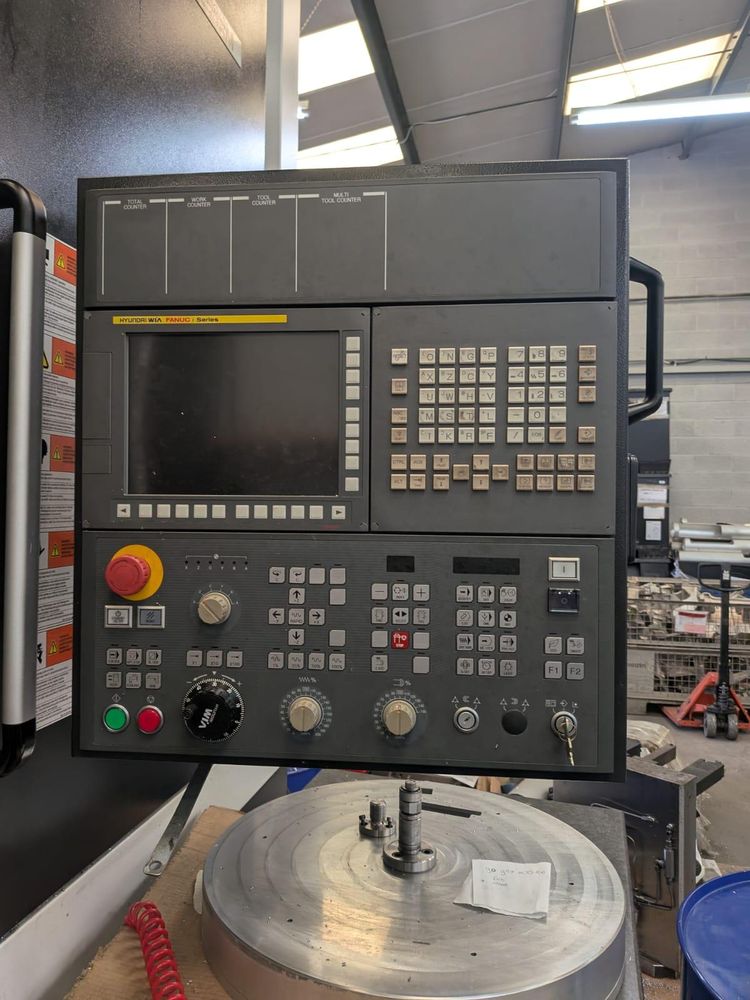

Control: FANUC 32i Model A
Machine Dimensions: 1975 × 2847 x 3350mm
Machine Weight: 9640kg
Maximum Cutting Diameter: 800mm
Maximum Cutting Length: 800mm
Milling Motor Power: 7.5/5.5kW
Milling RPM: 3000rpm
Rapid Feedrates: 20m/minute
Spindle Bore: 100mm
Spindle Motor Power: 30/22kW
Spindle Nose: A2-15
Spindle Speed: 2000rpm
Swing: 890mm
Swing Over Carriage: 710mm
Tool Size: 32 x 32mm

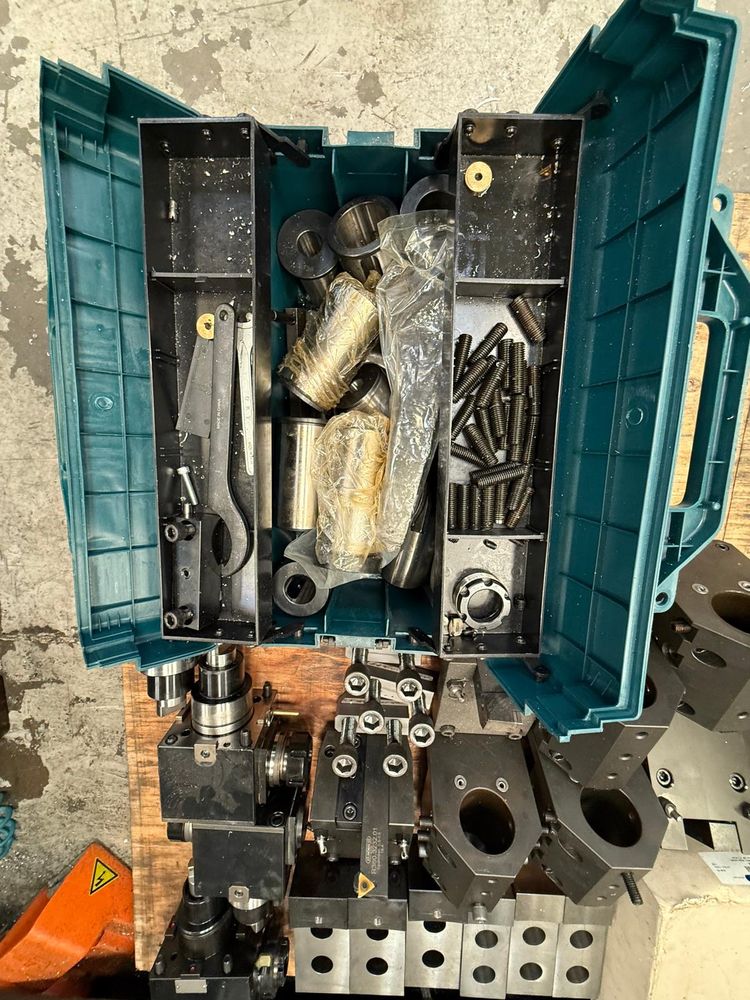

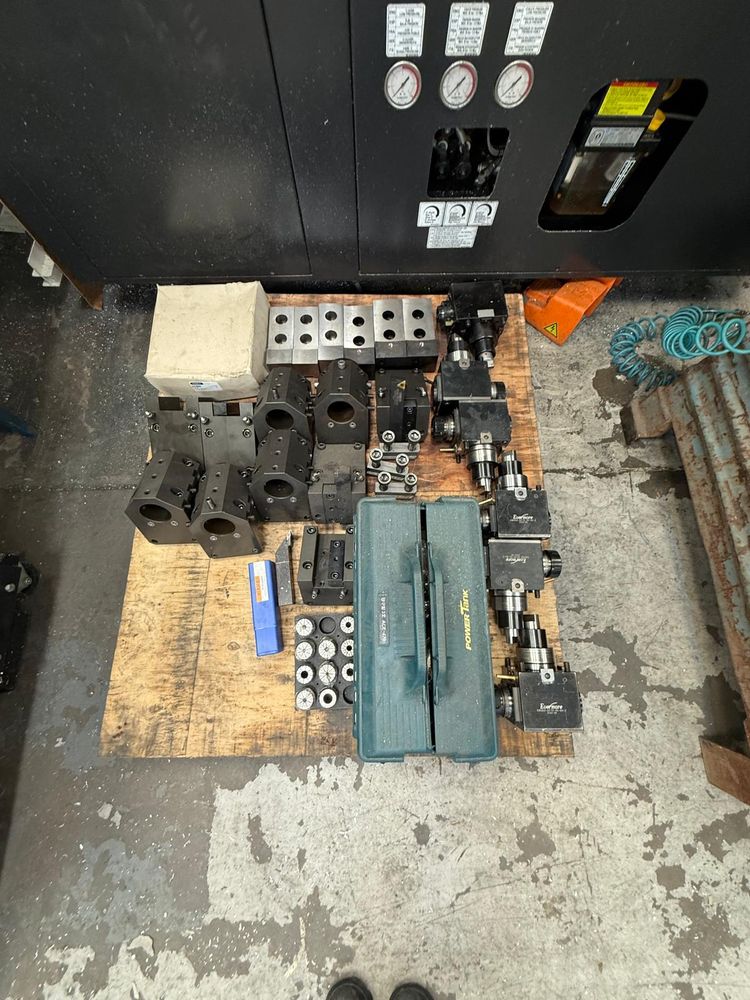

Tooling Configuration: BMT75P
Turret Positions: 12 Station
X axis Travel: 440mm
Z axis Travel: 800mm
