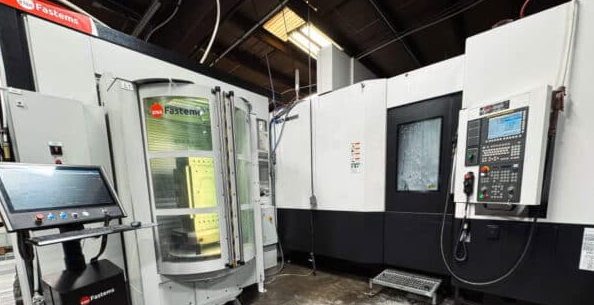

Hyundai Wia HS5000i with Fastems FPC-750 12 Station Palletech CNC Horizontal Machining Center 4 Axis

X-axis travel: 33.5 in
Y-axis travel: 27.6 in
Z-axis travel: 29.5 in
Distance from table top to spindle center: 2 – 29.5 in
Distance from table center to spindle nose: 5.9 – 35.4 in
Pallet size: 19.7 × 19.7 in
Maximum pallet load: 992 lbf
Maximum working size: 30.7 × H38.6 in
Minimum indexing angle: 0.001°
Rapid traverse X/Y/Z: 1,968 IPM
Spindle taper: CAT40
Spindle speed: 15,000 rpm
Spindle motor: 33.5 / 30 HP
Spindle torque: 123.1 / 70.1 lbf-ft
Number of tools: 60
Max. tool diameter: 3 / 5.5 in
Max. tool length: 17.7 in
Max. tool weight: 17.6 lb
Tool change time T-T: 1.1 sec
Tool change time C-C: 3.8 sec
Floor space: 120.5 × 210.2 × 123.8 in
Machine weight: 33,069 lb

Fanuc i Series (Fanuc 31i-B)
Upgraded Barnes drag style conveyor
Renshaw NC4 probe
Laser tool setter
1,000 psi coolant
60T magazine max call time: 2.9 sec
4-axis operation
500 mm pallet
High-performance built-in spindle
X/Y/Z axis rapid traverse: 60 m/min
Ball screw shaft cooling system
High rigidity 3-point support bed
Large diameter 50 mm ball screw
Ring type magazine
Best-in-class tool change time (C-C): 2.6 sec
Includes 12 pallets and tombstones
