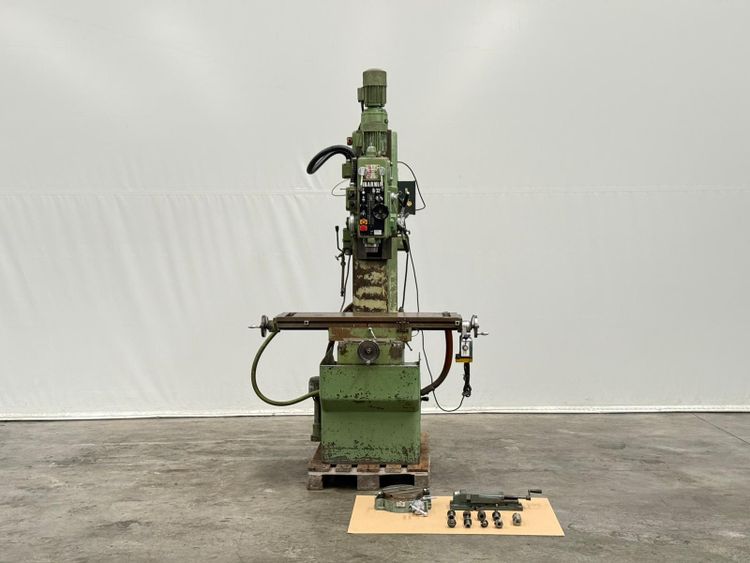

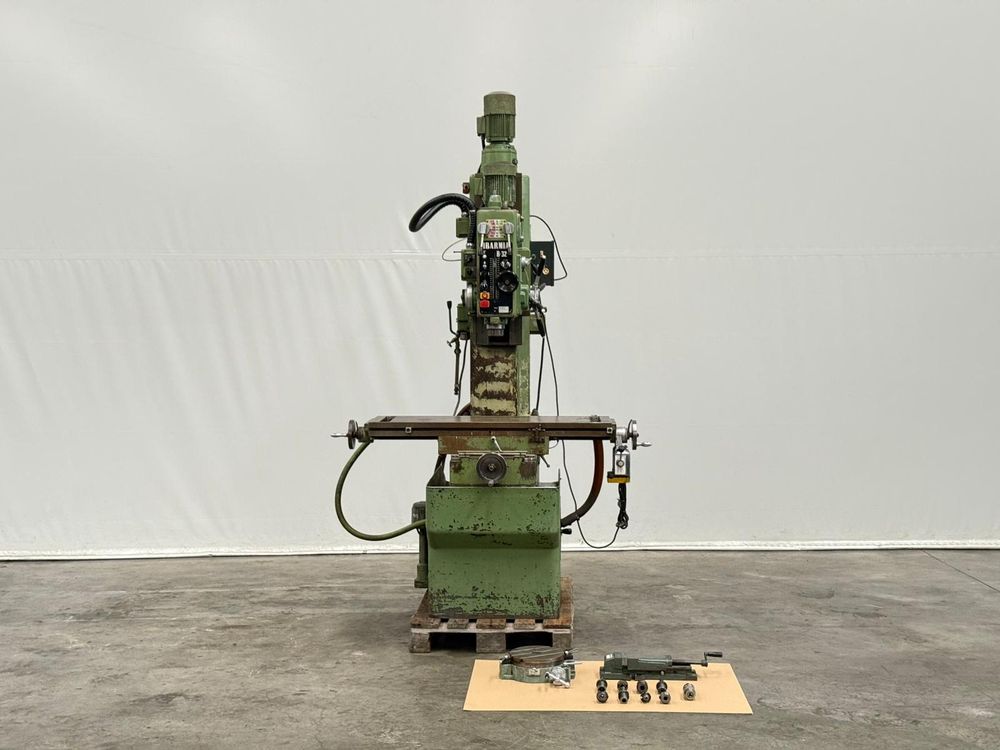

Ibarmia B-32-F 2,375 rpm

Ref : 2767282-3-MT

Condition : Used

Manufacturer : Ibarmia

Model : B-32-F

Spindle Speed : 2,375 rpm

Year(s) : -

Quantity : 1

Location : Seller or machines location:
EUROPE (Western and Northern)

Maximum drilling capacity: 32 mm
Table length: 1,200 mm
Table width: 360 mm
Spindle taper: ISO 30
Spindle speed range: 75–2,375 rpm
Throat depth: 420 mm
Spindle stroke: 200 mm
Extended stroke: 600 mm
Head tilt range: ±45°
Machine length: 1,600 mm
Machine width: 1,500 mm
Machine height: 2,750 mm
Machine weight: 2,150 kg

Features / equipment
Column drilling machine
Cross table
Automatic feed
Automatic table feed on X-axis
Frequency-controlled X-axis feed
Quick-change chuck holder
Gear-driven head
Coolant pump
Rotary table
Machine vice
ISO 30 tool holders
