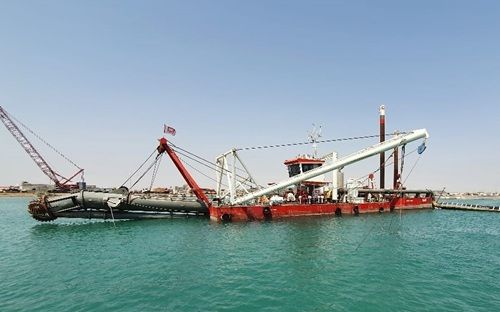

IHC Beaver 50 Cutter Suction Dredger GRT: 300 tons

Vessel Type: CSD
Class: RINA

Length Overall: 32.3 m
Length Over Pontoons: 21.65 m
Breadth: 7.87 m
Side Pontoons: 19.00 x 2.40 x 2.44 m
Mean Draught with Full Bunkers: 1.45 m

Maximum Standard Dredging Depth: 14.0 m
Suction Pipe Diameter: 550 mm
Discharge Pipe Diameter: 500 mm
Total Installed Power: 1,350 kW

Swing Width at Maximum Dredging Depth: 29.0 m
Swing Width at Minimum Dredging Depth: 36.5 m

Dredge Pump Type: IHC HRCS 1200-250-500, Single-Walled
Engine Type: Caterpillar 3512C HD SCAC
Continuous Engine Power: 1,350 kW @ 1,600 rpm
Specific Fuel Consumption: 208.6 G/KWHR
Ball Passage: 250 mm

Spud Length: 19.0 m
Spud Diameter: 559 mm
Spud Weight: 5,400 kg

Electrical Voltage: 24 V DC
Battery Capacity: 460 AH
Voltage (50 Hz): 230 V AC
Power (50 Hz): 8 kW

Cutter Type: IHC10-CB-AL-1455-180-V04
Cutter Power at Shaft: 170 kW
Cutter Diameter: 1,455 mm
Cutter Maximum Speed: 30 rpm

Ladder and Swing Winches Line Pull, First Layer: 90 kN
Maximum Line Speed: 20 m/min
Wire Diameter: 22 mm
Drum Diameter: 457 mm
Swing Wires Length: 100 m
Anchor Weight: 500 kg
