Illig RD 53D
Ref :
2778848-6-MT
Condition :
Used
Manufacturer :
Illig
Model :
RD 53D
Year(s) :
2016
Quantity :
1
Location :
Seller or machines location:
EUROPE (Western and Northern)
EUROPE (Western and Northern)

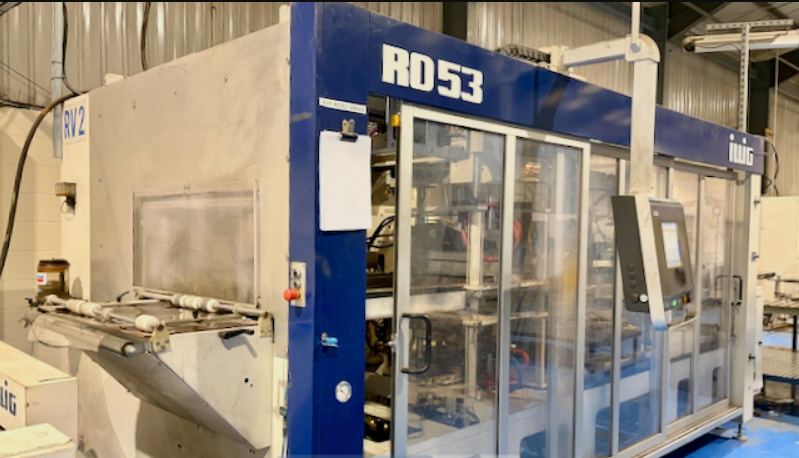

Automatic pressure forming machine
Working hours: Only 24,884.70
Incl. Chiller from ICS, from year 2024
Technical specifications
Forming area max. 500 x 365 mm
Mold width between material transport max. 524 mm
Mold length in feed direction max. 390 mm
Mold height on upper table max. 130 mm
Mold height on lower table max. 75 mm
Maximum material width: 550 mm
Index length max. 395 mm
Part height above material level max. 100 mm
Part height below material level max. 40 mm
Maximum forming pressure: 3 bar
Cycle speed with process optimization max. 45 1/min.
Machine in working order.
