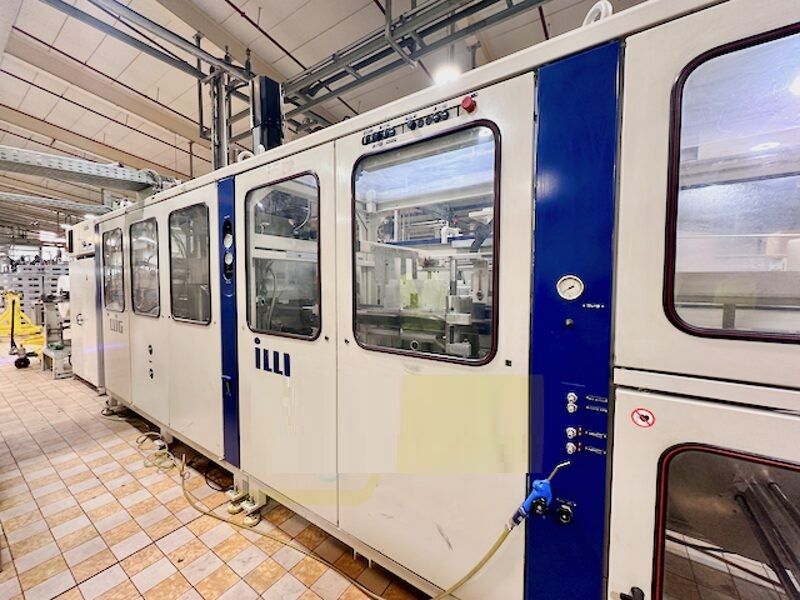

Illig RDK 54
EUROPE (Western and Northern)
Machine can and has run with pre-printed film roll
ILLIG VHW 60/2b Pre-heater and
ILLIG RS 75b Web-grinder
Forming area for forming operation max. 500 x 380 m
Material width max./min 610/200 mm
Material thickness max./min. 1,70/0,25 mm
Accuracy of material transport +-0,2 mm
Index length max./min. 418/150 mm
Depth of draw positive max. 120 mm
Depth of draw negative max. 120 mm
Mold closing force max. 500 kN
Forming pressure 6 bar
Number of Cycles max. 40 min
