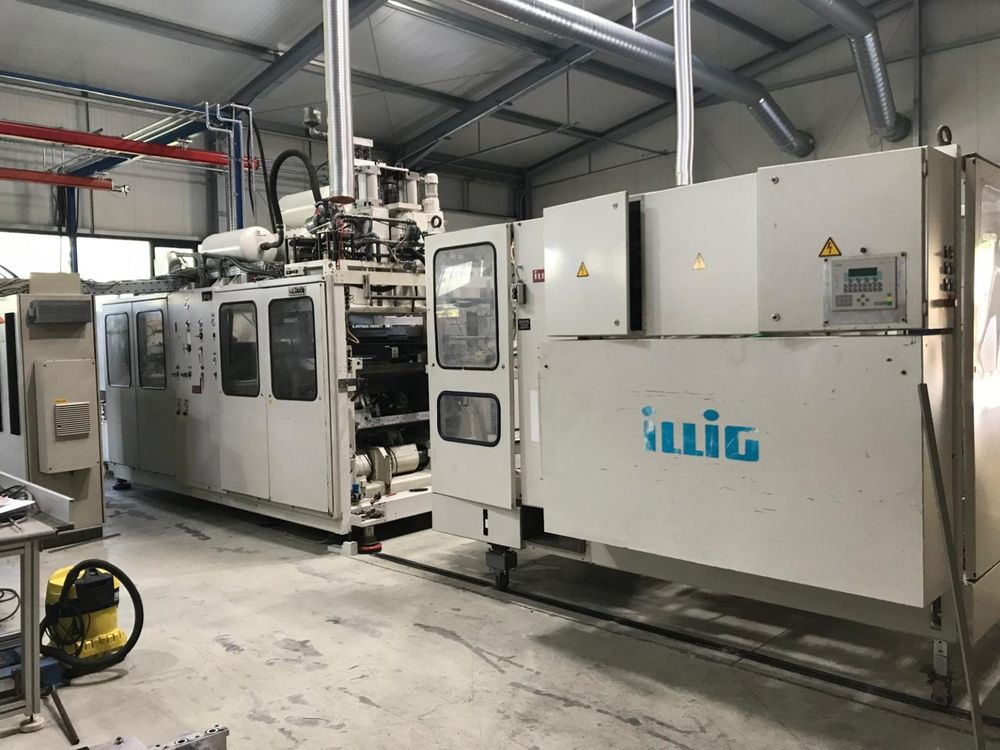

Illig RDM 75K

Ref : 2730482-6-MT
Condition : Used
Manufacturer : Illig
Model : RDM 75K
Year(s) : 1998
Quantity : 1
Location : Seller or machines location:
EUROPE (Western and Northern)

Maximum Forming Area - 700 x 450mm
Maximum Forming Height - 150mm
Maximum Film Width – 750 mm
Maximum Feed Length - 480mm
Maximum Clamping Force – 40,000 daN
Maximum Cutting Length – 8,400mm
Idle Speed ​​– 30 min⁻¹
Electrical Connection Power for Top and Bottom Heaters – 111.3 kW
Electrical Connection Power for Motors – 10.5 kW
Total Electrical Connection Power with Top and Bottom Heaters – 121.8 kW
Compressed Air Requirement per Cycle at 6 bar/min (Basic Machine) –
400 L
Compressed Air Requirement per Cycle at 6 bar/min
(with Hydraulic Upper Platen) – 320 L
Machine Length with Film Roll, Stacking, Counting,
and Ejector Unit – 9,875 mm
Machine Width without Control Cabinet (with Hydraulic Unit) – 3,850 mm
Total Height (Basic Machine) – 3,500 – 3,700 mm
Total Weight – 11,000 kg
