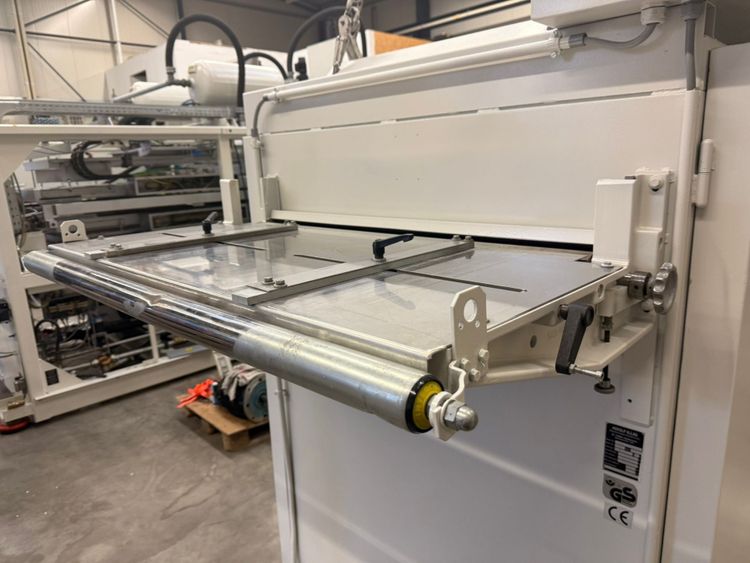

Illig VHW 90/2

Pre-Heater
year of manufacture 2006
Very good Condition

New SEW Control and NEW Electronical Heating relays with new cables.

Technical Details
material width max.​ 910​mm
material thickness max.​ 1.5​mm
connected load heating rolls​ 25.2 ​kW
connected load convection heater​ 7.5​ kW
total connected load​ 33,5​ kW
material unwinding speed max.​ 17​m/min
material unwinding speed min.​ 2​m/mín
temperature heating rolls max.​ 140​°C
temperature convection heater max.​ 140​°C
diameter of heating rolls​ 500​mm
number of heating rolls​ 2​ pieces
material loop​ 540 ​degrees
material unwinding length/cycle max.​ 700​mm
material discharging height max.​ 1465​mm
material discharging height min.​ 1050​mm
weight​1 200​kg
total length​ 2040​mm
total length incl. heat tunnel​ 2665​mm
total width​ 1550​mm
height​ 2300​mm
height incl. control cabinet cooling (option)​ 2640​mm Subject to modification.
