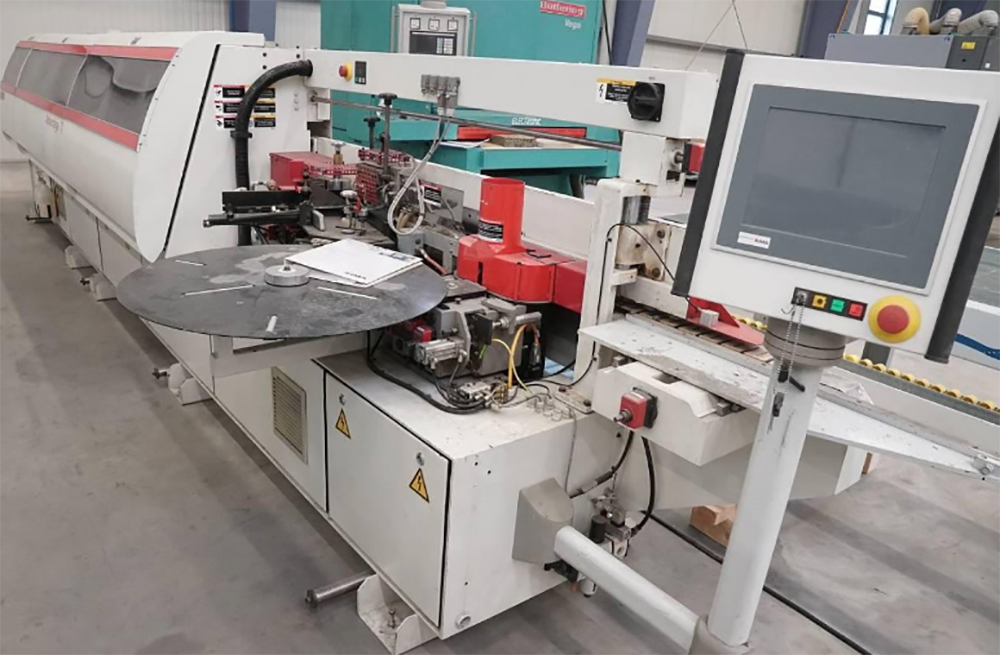

Ima Advantage 70

Edge thickness from 0.3 to 3 mm, laths up to 12 mm.
Features of IMA equipment:
- industrial design of all units and assemblies
- unit control from the control panel
- user-friendly touch-screen monitor
- instant change of glue tank
- equipment weight over 4 tons.

Equipment:
route control;
upper clamp with rubberized rollers
drive chain with linings (chain conveyor with drive)
protective covers 1750 ... 2200 mm long;- jointing and milling unit; infrared emitter with a heating lamp 300 mm long
edge gluing unit 283.1513 with pressure rollers;
end cutting unit 08.415
finishing milling unit 08.055
MFA (multifunctional units) 2 x 08.346
profile scraper 08. 519
flat scraper 08.50.
polishing unit 08.612.

Execution …………………… ………. stop on the left in the direction of workpiece movement
- Edging material … …… ………… natural veneer in rolls and strips;
…… ……………. synthetic veneer in rolls and strips;
………… ………. solid wood slats
- Type of glue ……………………… ………. hot melt adhesive based on synthetic resins
- Diameter of roll material (max), mm ………. 860
- Speed ​​of passage of workpieces, m/min ………………. 16
- Edge height, mm …………………………………… 14 … 55
- Edge thickness, mm …………………… …………… 0.3 …12
- Slab thickness, mm
minimum …………………………………… 8
maximum …………………………………… 60
- Slab width (min), mm ……………………………… 65 (with a minimum length of 300 mm)
- Slab length (min), mm ………………………………… 150 (with a minimum width of 150 mm)
- Edge section (max), mm
slats …………………………………………… 12 x 65
PVC ……………………………………………… 130 sq. mm
- Compressed air pressure, bar ……………………… 7
- Aspiration, …………………………………………. 28 m/s; 2700 cu.m; 3x80 and 120 mm.
- Power ………………………………………………….. 14 kW; 34 A
- Length x width, mm ……………..……………………… 7,800 x 1,600 mm
