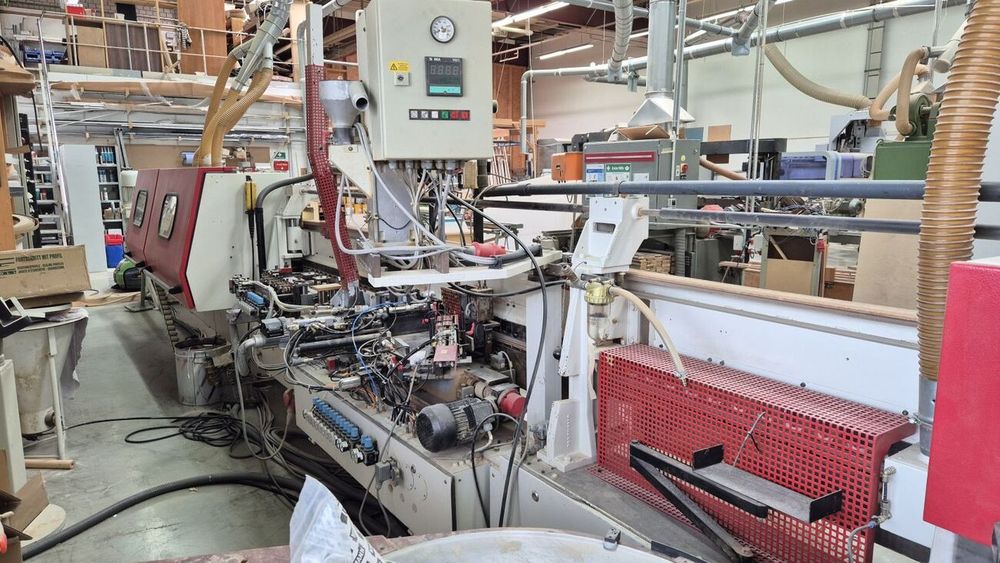

Ima AVM/K/I/G80/822/S3R3L20

Single-sided rebate and edge-banding machine for milling, edge banding and postproduction for a rebate
- only on formated / pre-rabbet doors and unrebate doors left machine (fix stop on the left side).

total processing in 3 throughfeeds
1. throughfeed: door top side (cross processing)
2. throughfeed: door long side
3. throughfeed: door long side

During 2. and 3. throughfeed the edge projection from 1. throughfeed is beeing milled by normal-reverse milling.
The double rebate glueing is only possible by readjustment of the machine and manual postprocessing of the edge.

max. door thickness:
- vertical edge: approx. 70 mm
- rebate glueing: approx. 60 mm

Heavy machine base as carrier for units.
Drive for feed speed of approx. 5-25 m/min., mechanical stepless adjustable. (not the same as processing speed)
Transport chain with plastic plates, approx. 80 mm wide, with automatic central lubrication.
Manually height-adjustable top pressure with v-belt 80 mm wide.
Machine length approx. 10.900 mm
Infeed table
1 horizontal manually adjustable unheated infeed fence
1 pre-milling unit
controllable, not swivable, not tracing with 2 motors, each 3 kW

Glueing unit for optional use of straight edges or softforming, by change of glue application device.
Edge material:
- Strips: up to 1,3 mm
- Coil material: 0,4-3 mm
- Solid wood strips: 6 mm
Strip length max.: 2550 mm
Strip height: 14-80 mm (depending on glue application)
with:
- Manual side adjustment for pneumatic moveable glue application.
- Manual height adjustment from -15mm up to +10mm

1 glue application 0,8L,
max. edge height 70mm, straight edge with pneumatic quick lock,
Chem-Coat, electronic temperature control

1 hot melt glue application 0,8L with quick-lock, edge height max. 80 mm, soft edge,
Chem-Coat, with temperature control and control unit for strips

1 automatic Quickmelt hot melt glue application heating power 5,0 kW
1 2-fold magazine for edge material up to 3,0 mm thickness, manually mountable on the single coil magazine

1 rebate shape pressure zone for pressing of edge material to a rebate with:
- an activation unit 15 kW for reactivation of the edge material for rebate-shaping
- a pneumatic controlled shaping tool for the bottom fold edge
- a pneumatic controlled shaping tool for the complete rebate
- additional pressure rollers for the edge areas with rebate
- an electropneumatic side-moving device for the complete pressure zone

1 horizontal adjustment with mechanical digital readout
1 trimming unit for 2 motors mounted on top pressure
for trimming of the front and rear edge/strip projection
for trimming flush or with chamfer.

1 milling unit for 2 motors with height tracing, side tracing,
for flush milling from botom and top with 2 motors 1kW, 400V, 200Hz, 12.000 rpm, 30° swivable

1 milling unit for 2 motors with height tracing, side tracing,
for fine milling from bottom and top with 2 motors 660W, 400V, 200Hz, 12.000 rpm, 30° swivable
