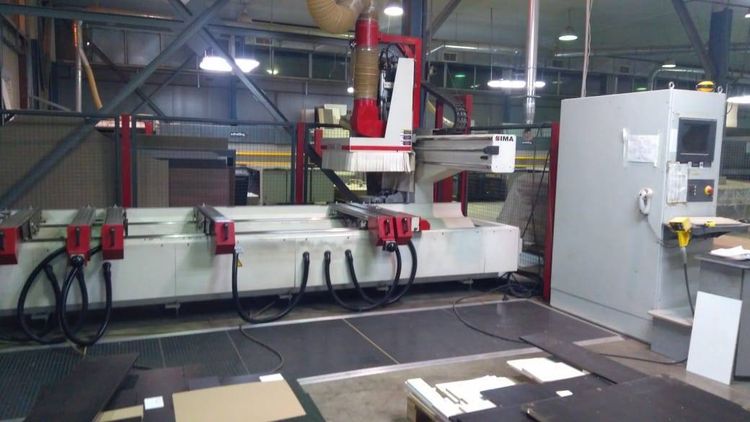

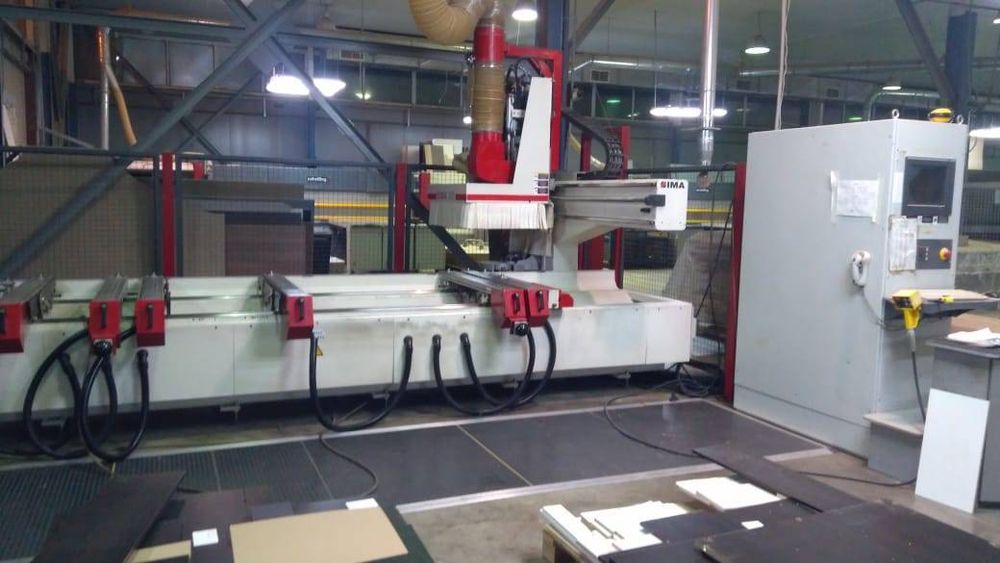

Ima BIMA 200 125/330

Equipment
· 7.5 kW main spindle
· 8-piece automatic tool change magazine
· protective light shutter
· hose-less vacuum system (without front supply hoses)
· 90 m3 of vacuum unit per hour
· pendulum loading system with mats
· central lubrication of linear guides and spindles
· six support brackets that are adjustable along the X-axis, with rear stops
. · 2 stops on the right and left, all stops are controlled by programs
· 18 vacuum suction cups of two sizes (12+6):
· special tires on each support bracket
· connection to the central suction system
· ICOS open 231 PC control
· IMAWOOP program in the office
· portable control panel
· a set of cutting tools.
- 14-spindle vertical drilling unit with a grooving and horizontal drilling unit (2 spindles along the X axis and 1 spindle along the Y axis)
- one additional horizontal spindle along the X axis instead of one vertical spindle
- one additional horizontal spindle along the Y axis instead of one vertical spindle
- LED indicator system on the support brackets and along the machine
- automatic suction cup placement program
- DXF Deluxe
- Connection to the production network
- Remote diagnostics
