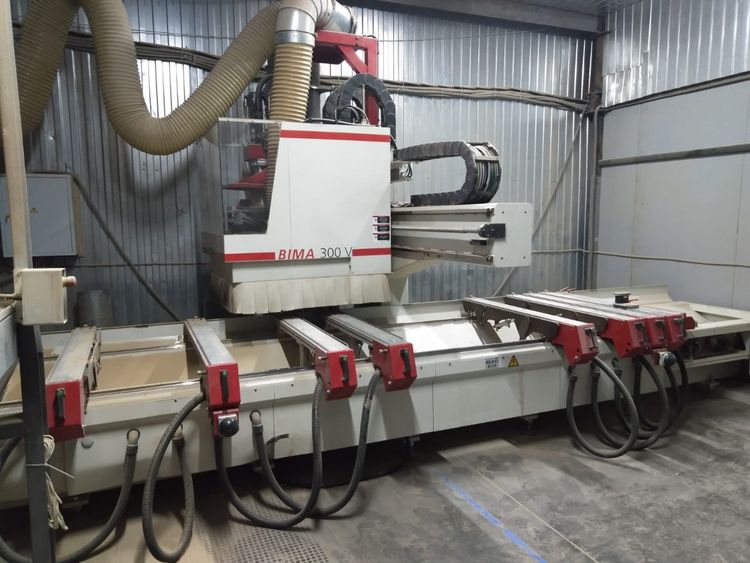

Ima BIMA 300 V/125/430

Main technical data:
Working range X 4,300
Working range Y 1,430
Working range with edge banding unit 1,000
Working range Z 100
Number of milling spindles 1
Main motor, cooled, kW 18.0
max. speed rpm 24,000
Torsion stop yes
C-axis, swivels 360 degrees
Type of clamping device HSK-F63
Number of places in the tool magazine 18
Vertical drilling spindles 21 (11 + 11)
Horizontal drilling group X 2
Horizontal drilling group Y 2
Sawing unit swivels 90° unit,
Separate Y-axis
Height of edge material mm 14 - 64
Table type traverse table
Number of traverses 8
Middle row of additional stops 8
4 working zones yes
LED indicators to assist with positioning yes
Set of vacuum suction cups, pcs. 24
Vacuum pump. 2 pieces
Vacuum pump capacity m³/hour, 90 each
Reads DXF format yes
Safety device - sensor mats
Plate-type tool changer yes
Edgebanding unit IMA VT 40 yes

Adapter units:
- saw with 90-degree rotation
- selection of nests for locks on the side of the workpiece
- vertical milling unit with a copy
- milling unit and scraper for flush working
- scraper for glue

Control and programs:
- IMA ICOS OPEN 231
- IMA IMAWOP 8.0
- DXF Deluxe Interface
