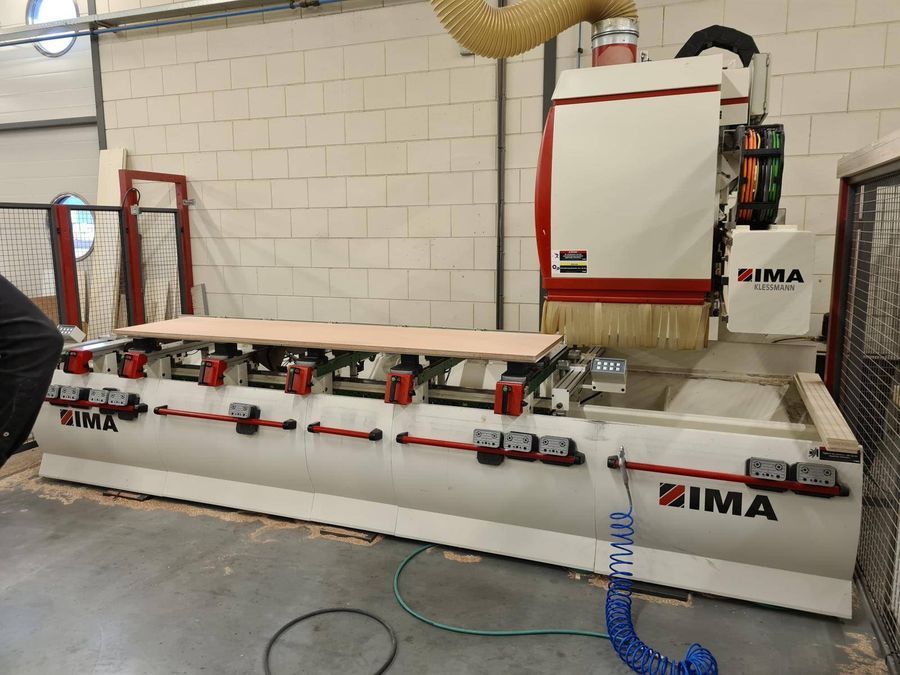

Ima BIMA 315/125/330 4-axis

Technical specifications:
Processing area, mm:
- X axis 3 300
- Y axis (main spindle) 1,400
Clamp height Z1 from the top edge of the vacuum plate (max), mm 125
Caliper feed:
- accelerated movement of the X and Y axes, m/min 60
- accelerated movement of the Z axis, m/min 30
· Compressed air pressure, bar 6
· Vacuum pump capacity, m3/h 100
· Aspiration hose diameter, mm 250
Length x width, mm 6,900 x 3,830
Weight, kg 5,700

Equipment:
Main spindle 7.5 kW, 18000 rpm;
4th axis "C" 360 degrees;
work with adapter units (5 units included with the machine)
Automatic tool change magazine – 18 positions;
pendulum loading system;
6 crossbars for vacuum suction cups
4 crossbars with pneumatically lifted tires for stacking heavy parts
18 vacuum suction cups of two sizes - six support brackets, adjustable along the X-axis, with rear stops;
vacuum unit 100 cubic meters per hour;
14-spindle vertical drilling unit with 6-spindle grooving and horizontal drilling unit safety mats
protective light shutter;
centralized lubrication of linear guides and spindles;
connection to the central aspiration system;
PC control ICOS open 231;
IMAWOOP program in the office;
portable remote control;
set of cutting tools.
