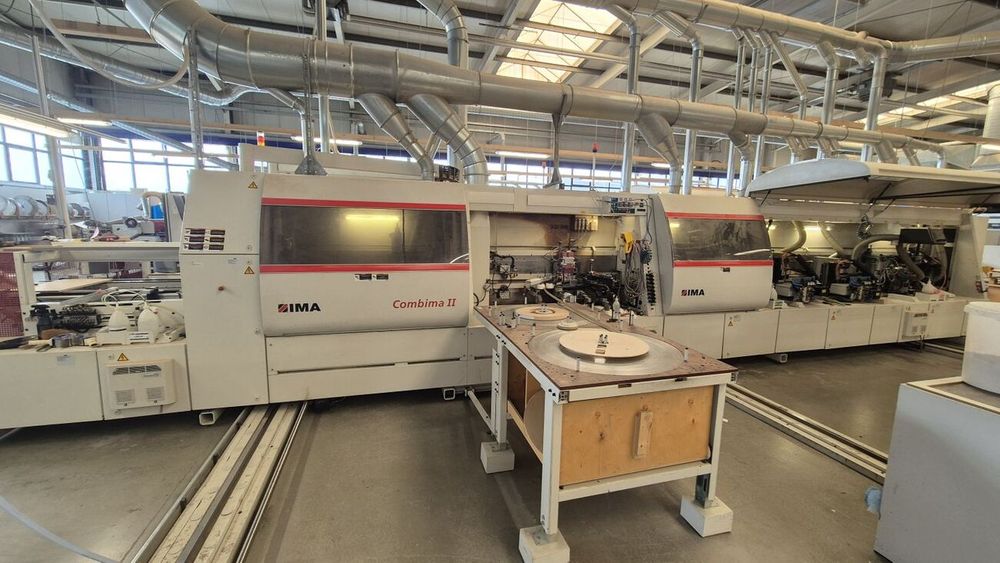

Ima Combima/II/390/B/L12

Double - sided edge banding machine
For longitudinal and cross feed
- 2 low-maintenance precision roller chains with 75 mm wide and 85 mm long, rubber-coated chain plates.
- With dogs - spacing 1080 mm. Pneumatically adjustable to heights of 8, 16, or 24 mm.

ICOS OPEN Control System
Max. feed width: 3,300 mm
Program-controlled master + slave width adjustment
Fixed reference side on the left in feed direction

Workpiece dimensions:
Min. feed width: 244 mm (in longitudinal processing)
Max. workpiece width (with chain conveyor extension): 1,300 mm
Min. workpiece thickness: 8 mm
Max. workpiece thickness: 45 mm (with copying function) / 60 mm (without copying)

Edgebanding material:
Min. height: 14 mm, max. height: 65 mm
Roll material: min. thickness 0.3 mm, max. thickness 3 mm

Strips and lippings:
Min. thickness: 0.8 mm, max. thickness: 12 mm
Feed speed: 10 - 50 m/min, with frequency-controlled drive

Infeed device:
With 5 skewed, powered rollers acting from above
Center support with roller conveyor, automatically lowerable and self-centering

Per side equipped with:
Release agent application top and bottom
Scoring saw with 2.2 kW motor, 100 Hz, 6,000 rpm, pneumatically controlled
Electronic positioning for stepless horizontal adjustment
Vertical adjustment manual with mechanical display

Rough trimming unit with 8.0 kW motor, 100 Hz, 6,000 rpm
Electronic positioning for stepless horizontal adjustment

Double milling unit with 2 motors, each 4.5 kW, 150 Hz, 9,000 rpm
Electronic positioning for stepless horizontal adjustment
Vertical adjustment manual with mechanical display

Gluing unit for hot-melt adhesive
With single roll/strip magazine for roll material up to 3 mm and strips up to 12 mm
Double roll magazine for roll material up to 3 mm (attachable to single roll magazine)
Horizontal roll holder

End trimming unit
Mounted on top pressure beam, with 2 motors, each 660 W, 200 Hz
Pneumatic swiveling 0° + 25° for straight and bevel trimming cuts
Automatic adjustment for bevel trimming with two different edge thicknesses (e.g. 0.4 and 1.2 mm), as well as for “edge overhang” copying with edge thickness 1.0 - 3.0 mm

Automatic adaptation to feed speed 20 + 30 m/min

Flush milling unit 08.0555
With 2 motors, 1,850 W, 200 Hz, 12,000 rpm

Multifunction unit 08.353
NC-controlled, with 2 motors, automatic tooling for 4 profiles

Multi-profile scraper unit
With automatic tooling for 4 profiles via fixed-point control

Spray nozzles top and bottom
For applying cleaning agents

Flat scraper unit

Buffing unit
With 2 motors, each 180 W, 50 Hz, 1,400 rpm

1 Grooving unit
With 4.5 kW motor, 150 Hz, 9,000 rpm
Horizontally and vertically manually adjustable with mechanical digital display
Pneumatic activation control
Manual swiveling 90°

ICOS OPEN
PC-based control system with integrated PLC and electronic path control
User-friendly interface with Windows standards
Simple, component-oriented program creation
Freely definable program names
