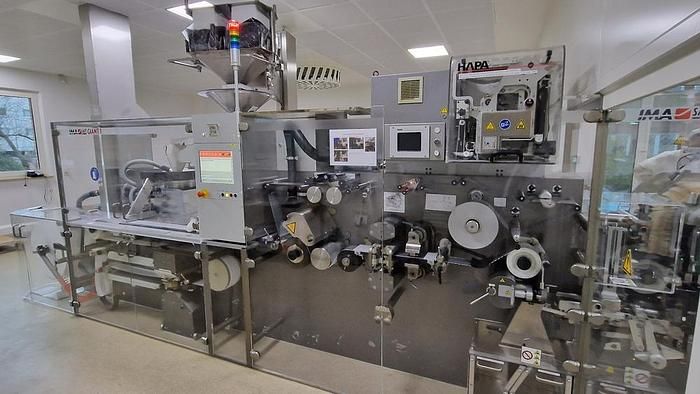

Ima Giant 1-A80i, Case Packing and Blistering

• Setup for ALU/PVC-PVDC-ACLAR, 1 lane
• Sheet forming, roll sealing
• Max. output: 350 blisters/min, max. 175 boxes/min
• Blister forming area in travel direction: max. (width x length) 180 x 140 mm
• Blister width 30-90 mm
• Blister length 60-140 mm
• Drawing depth 3-12 mm
• Folding carton dimensions (width x length x height) 35-95 x 65-145 x 12-100 mm
• Hapa 230-T-1C-LR flexographic printing unit, unused
• Directional feeder (hat) for tablets/capsules
• Brush box feeder for coated tablets and film-coated tablets
• Sealing pressure control
• Print mark control for coating film
• Blister embossing station
• Blister piercing station
• Integrated cooling device
• Product inspection with color camera (1024-800 pixels) and code reading using the IMA system Antares-Vision
• Reading PharmaCode, Data Matrix, EAN, etc. for 2 leaflets, leaflet presence, folding carton
• Filler tray
• Stackable tray for 1-20 blisters
• GUK FA 21/4 leaflet folding and inserting device, Cartonac 2000
• Leaflet dimensions (width x length) 60-210 x 130-450 mm
• Equipped for double-sided offset tuck-away flaps
• Missing pack ejection with counter-check
• Cartoner without embossing unit, equipped with a print cartridge holder for an inkjet printer
• 2x IPC control with HMI
• Omron servomotors and inverters (SGDH-10/15/30-DE-OY)
• Pilz safety technology
• Remote maintenance
• Lifting column
• Format molds for blisters with dimensions (W x L) 42 x 102 and 42 x 118 mm, 2 x 5 tablets, tablet diameter 8.8; 9.0; 10; 11.5 mm
• 230/400V/50Hz operation
• Twice-yearly service, very good maintenance
