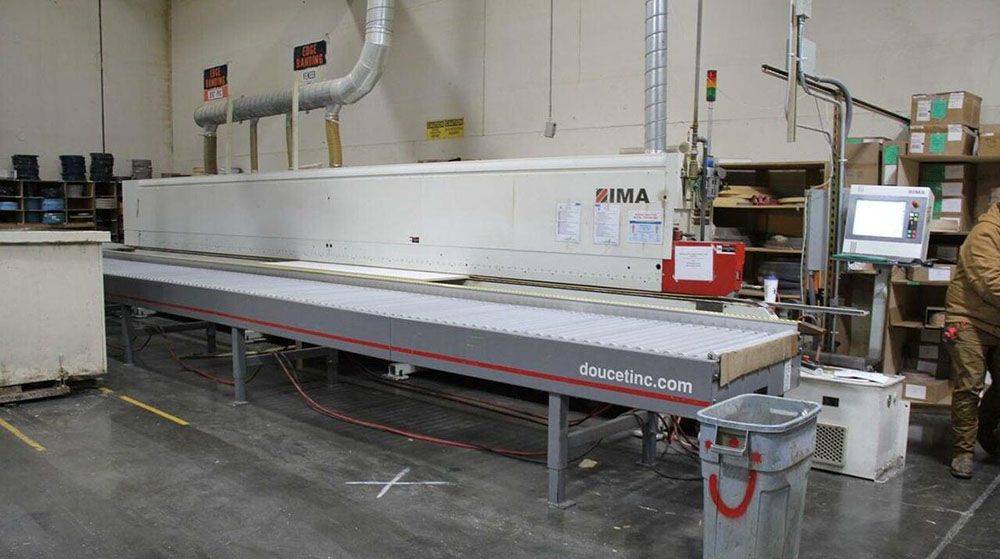

Ima Novimat I/G80/440/R3

Edgeband Thickness Max: 3 mm
Thickness of Coiled Edgeband Max: 3 mm
Suitable for PUR glue
Premilling unit
Corner rounding unit: 2 motors
Scraper unit: Profile and flat
Aggregates actuated by control: NC-axes
Machine length: 10.400 mm
Control: IMA ICOS OPEN COMPACT
Workpiece return: Yes
Edgeband Height Max: 65 mm
Workpiece Length Min: 150 mm
Workpiece Width Min: 65 mm
Electromotoric height adjustment
Top pressure by belt
Feedrate max: 30 m/min
Preheating zone
Continuously variable feed
Places in Coil Magazine: 2
Spraying Device
Trimming Saw: 2 motors
Flush/radius/chamfer milling units: 1
Buffing unit
Type: Left-side Machine

Space Required:
Length: 13.700 mm
Width: 5.550 mm
Height: 2.400 mm

IMA 08.378 Premilling unit
IMA 08.42 Cutting aggregate
IMA 08.055 Milling aggregate
IMA MFA 08.348 Multiple machining aggregate
IMA 04.1570 Gluing aggregate
IMA 08.519 Profile scraper aggregate
IMA 08.521 Duplex flat scraper
