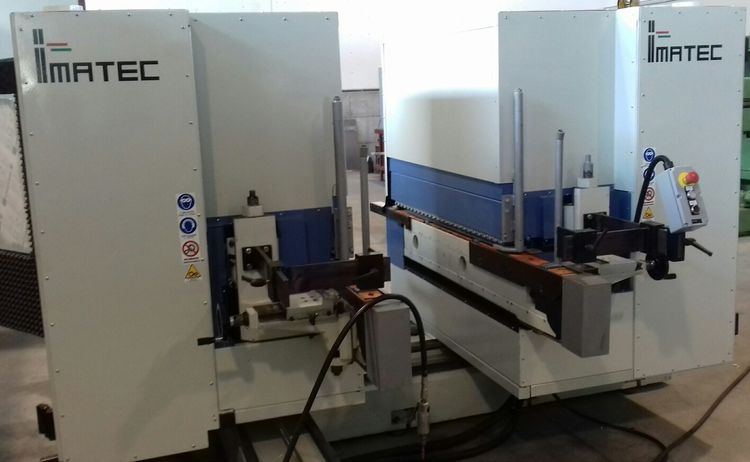

Imatec DOUBLE END SQUARING MACHINE

END TRIMMING – PROFILING Machine for tilting wood floor at 45° or others degrees
DOUBLE END SQUARING MACHINE 45°
– End trimming motors HP 5,5 – 6000 rpm
– Roughing motors with blades HP 5,5 – 6000 rpm
– Milling motors HP 7,5 – 6000 rpm
– Double chain
– Feed with double motors which is driven from electric plc electric to get the absolute precision of the fix speed of the 2 chains
– Speed variation regulated from inverter
– Automatic loading with hopper
– Length of piece at 45° from 180 to mm 1200
– Width of piece at 45° from 20 to mm 150
– Thickness of piece from 6 to 60 mm
– Weight 270 kg
– Dimensions mm 2500x2400x1700 h
