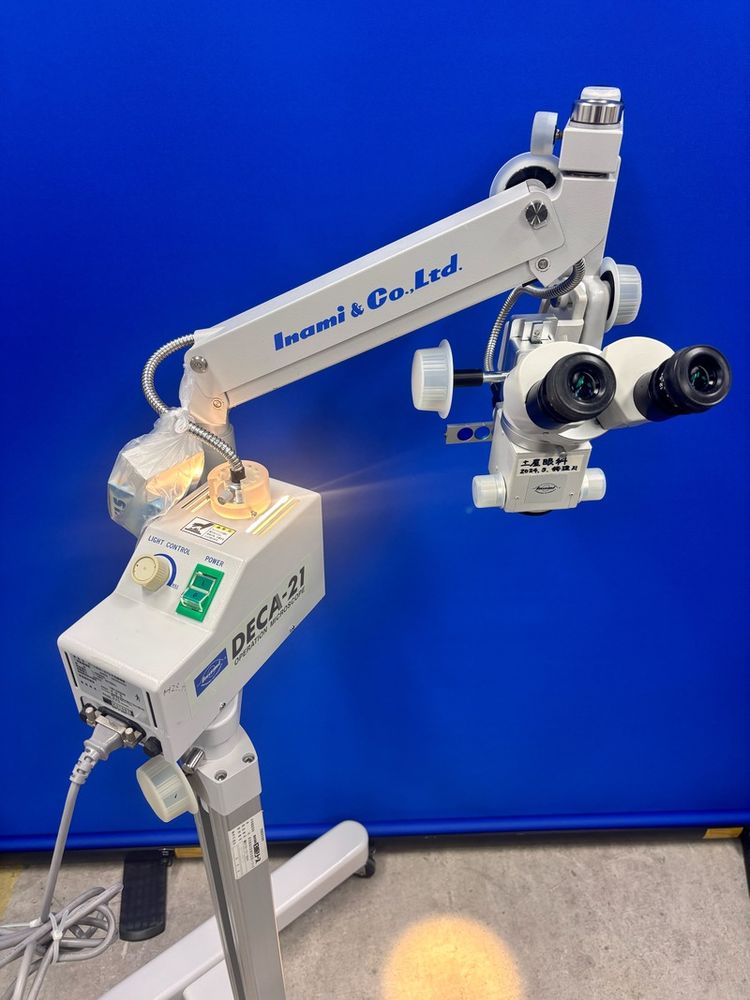

Inami L-0950SD Portable Zoom Microscope

The Inami L-0955-SD portable microscope offers an optional integrated C-mount system,
an additional beam splitter, and a video camera mount that eliminates the need for
video recording.

Specifications & Options
Galilean-type Binoculars Power savings Enhanced intensity and operation control Continuous light intensity control Adjustable binoculars Battery operation
Portable hard case Table-mount or wall-mount system User-friendly interface software
“Pixel Filter” Optional integrated C-mount system Optional additional beam splitter
Optional USB video camera

Configuration
MICROSCOPE HEAD TYPE Galilean-type Microscope MAGNIFICATION CHANGE
Continuous zoom with drum rotation
EYE-LENS 15x with helicodial diopter adjustment 6x ~ 18x
MAGNIFICATION RATIO 35 ~ 10mm
PUPIL ADJUSTMENT 50 ~ 75mm
OBJECTIVE LENS F=250mm
DIOPTER ADJUSTMENT -6D - ±6D
WEIGHT 15kg
DIMENSIONS 1090mm x 470mm
FILTER Cobalt Illumination, Red-Free Heat Absorption, 1/2 ND
LIGHT SOURCE Halogen: 12V/50W Lamp Bulb (L016H1)
MAXIMUM INTENSITY 80,000 Lux TYPE Focus Adjustment Manual Slider
ADJUSTABLE DISTANCE 30mm
FOCUS SPEED 1.3mm / Head Tilt Head Tilt Angle 0 - ±30°
Head Swing Angle Left to Right -30° ±30°
Power Supply Input Voltage AC100 ~ 240V
Power Consumption 50VA

Condition
Patient ready
