Index CNC control C200-4D 5,000 U/min C65 5 Axis

X-axis travel 110 mm
Y-axis travel 70 mm
Z-axis travel 360 mm

Rapid traverse X/Y/Z 25/12/45 m/min
B-axis ±1°
C-axis 0,001°

Spindle passage 65 mm
Main spindle turning speeds 5,000 U/min
Main spindle max. torque 145/105 kW at 40%/100% load
Opposed spindle X-axis travel 150 mm
Opposed spindle Z-axis travel 600 mm
Opposed spindle turning speeds 5,000 U/min

Turret-slide 1, 2, and 3
Tool turret 3 x 12 stations
Tool taper DIN 69880 VDI 25 x 48
Total power requirement 61 kW
Weight approx. 6.5 t

Machine dimensions 9.75 x 3.10 x 2.85 m

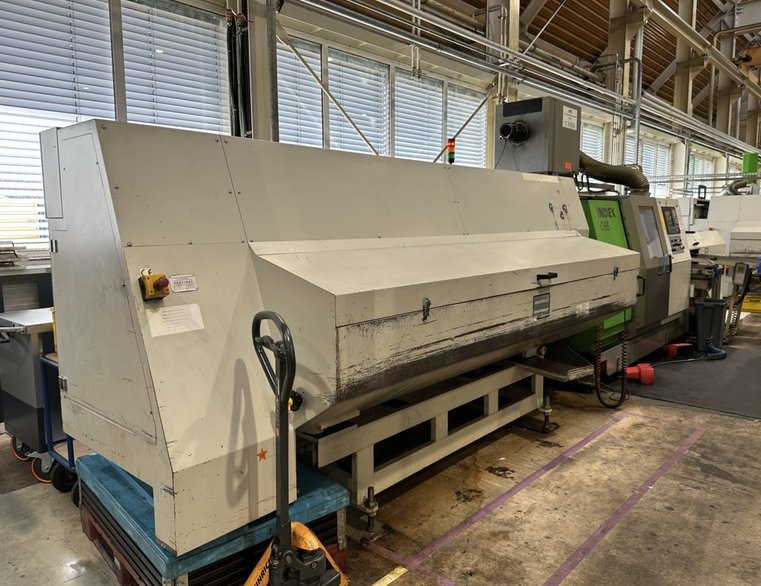

Breuning Profimat 65.8x270/8 multi-channel loading magazine
8 guide channels with spindle insert tubes Ø16, 25, 30, 40, 45, 55, 60, 65 mm
BREUNING ILS-REX-7208 automatic workpiece unloader
