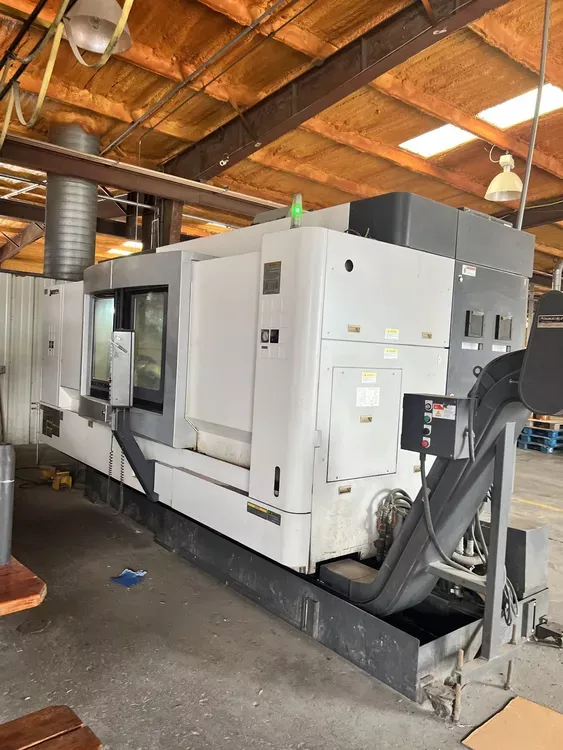

Okuma CNC (OSP P300S CNC COLOR CONTROL) 2,800 RPM MULTUS B400-II-BBW / 1500 6 Axis

X1 - Axis Travel: 27.17"
Z1 - Axis Travel: 60.83"
Y1 - Axis Travel: 9.06"
W - Axis Travel Sub Spindle: 61.02"
B - Axis Head Travel: 225 DEGREE
B - Axis Head Indexing: 0.00
C - Axis Indexing 1: 0.00
C - Axis Indexing 2: 0.00

Control: CNC (OSP P300S CNC COLOR CONTROL)
Rapid Traverse Rate - X1: 1575 ipm
Rapid Traverse Rate - Z1: 1575 ipm
Rapid Traverse Rate - Y1: 1024 ipm

Chuck Size 1: 12"
Spindle Nose 1: A2 - 11
Spindle Bore Diameter 1: 4.33"
Bar Capacity 1: 3.8"
Spindle Speeds 1: 2,800 RPM
Spindle Horsepower 1: 40 hp
Chuck Size 2: 12"
Spindle Nose 2: A2 - 11
Spindle Bore Diameter 2: 4.33"
Spindle Speeds 2: 2,800 RPM
Spindle Horsepower 2: 40 hp
B - Axis Milling Spindle Taper: CAPTO C6
B - Axis Milling Spindle Speed: 6,000 RPM
B - Axis Milling Spindle Horse Power: 18.7 hp
ATC For Milling Spindle: 80
Tool Diameter: 3.54", 5.12"
Tool Length: 15.75"
Tool Weight: 22 lb

Machine Weight: 33,000 lb
Weight: 17,600 lb

Equipped with:
Dual 12" Schunk Chucks
Hinge Type Chip Conveyor
Shower Coolant Type A
I/O Variable User Task II
Rapid Traverse Override Switch
Spare M-Codes 4 Sets
Tool Offset 200 Sets
Hydraulic Chuck / Air Chuck Switchable
Custom Tool Life Management
MACMAN-NET
Slant Y Axis
Y Axis Barrier
Hi-G Control
Sub Spindle
B-Axis 0.001 DEG Control
B-Axis Compensation
Profile Generate
Plane Conversion
Sync Tap
Helical
Slant Cut
Touch Setter
Touch Sensor
Y Gauging
Both Spindles Equipped with Tool Setters
LAP 4
NOSE R 2B
User Task 2
Exp. Auto Chamf
Program Help
3D Animation
HI-CUT PRO
ADMAC 3D Virtual Monitor
Chuck Grasp Confirm
Coolant Thru Mill Head
Spindle Chiller
Mist Blaster System
(2) Tooling Carts
Helical Contour Milling (C-Axis, X-C-Z) MSB
Helical Milling (X-Y-Z) MSB
Collision Avoidance System
Ball Bar Tests Available
