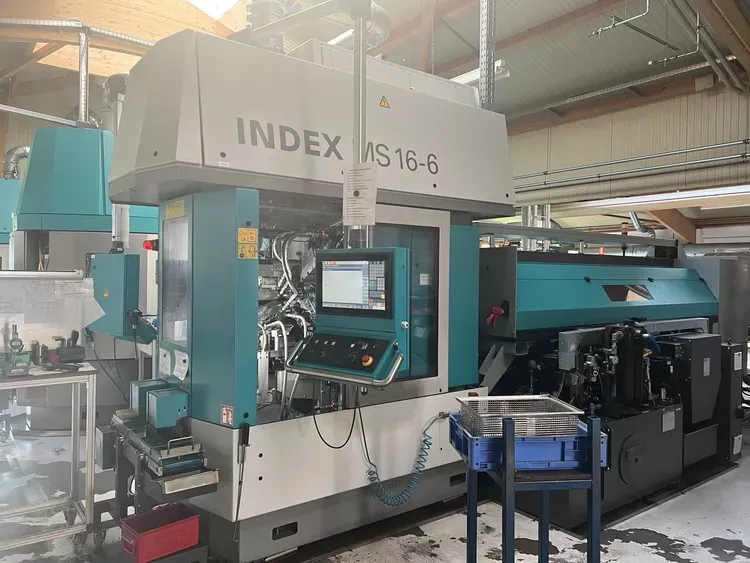

Index INDEX C200 SolutionLine Variable Speed MS16 Plus 2 Axis

Maximum bar diameter: 22 mm
Number of spindles: 6
CNC multi-spindle automatic screw machine
Control: INDEX C200 SolutionLine
Single NCU with PCU
HSP individual drive system
Number of synchronizing spindles: 2
Dual operator panels with 18.5" flat screen displays
Secondary touchscreen display
Smartlight LED status light
EC conformity certificate

Spindle position 1 slide 1.1: X-axis NC-controlled
Spindle position 1 slide 1.1: Z-axis NC-controlled
Spindle position 1 slide 1.2: Z-axis NC-controlled
Spindle position 2 slide 2.1: Z-axis NC-controlled
Spindle position 2 slide 2.2: X-axis NC-controlled
Spindle position 2 slide 2.2: Z-axis NC-controlled
Spindle position 3 slide 3.1: X-axis NC-controlled
Spindle position 3 slide 3.1: Z-axis NC-controlled
Spindle position 3 slide 3.2: X-axis NC-controlled
Spindle position 4 slide 4.1: X-axis NC-controlled
Spindle position 4 slide 4.2: X-axis NC-controlled
Spindle position 4 slide 4.2: Z-axis NC-controlled
Spindle position 5 slide 5.1: Z-axis NC-controlled
Spindle position 5 slide 5.2: X-axis NC-controlled
Spindle position 5 slide 5.2: Z-axis NC-controlled
Spindle position 6 slide 6.1: Z-axis NC-controlled
Spindle position 6 slide 6.2: X-axis NC-controlled
Spindle position 6 slide 6.2: Z-axis NC-controlled

Set of 6 BZ collet holders for main spindles
Maximum clamping diameter: 22 mm
Mechanical collet change device at main spindle
2 Hainbuch Spanntop Axfix D22 for synchronous spindles

Bar loader: IEMCA SIR MS16plus/33/P side loader
Flat magazine loader 50 Hz
Bar diameter range: 9 mm
Bar diameter range: 13 mm
Bar diameter range: 19 mm
Bar diameter range: 26 mm
Maximum bar length: 3,300 mm
Material storage loading surface: 200 mm
Additional storage chain capacity: 20 bars
Profibus-DP-slave interface
Additional bar end sensor
Set of 6 material pushers for 14–16 mm
Set of 6 intermediate guide tubes 19 mm
UNIMAG interface for bar loader connection

Synchronous device with workpiece ejection at position 5.1
Synchronous device with workpiece ejection at position 6.1
Adjustable synchronous stroke: 6 mm
Adjustable synchronous stroke: 12 mm
Adjustable synchronous stroke: 18 mm
Adjustable synchronous stroke: 35 mm
Coolant supply through synchronous spindle

Backworking unit at position 5.2
Two fixed tool holders D15 at position 5.2
Backworking unit at position 6.2
Two fixed tool holders D15 at position 6.2

Pneumatic part discharge from spindle position 5
Pneumatic part discharge from spindle position 6
Electrical preparation for external conveyor at position 6

Polygon and thread milling unit for cross slides
Auxiliary drive gear ratio: 5:1
Inductive reference sensor
Short taper mount
Suitable for D70 cutters
Oil/air lubrication for tool holders

Electrical preparation for two additional auxiliary drives
Electrical preparation for first material stop control
Electrical preparation for second material stop control
Electrically monitored cutoff and stop holders: 2

NC option for synchronous spindle and polygon turning
Electronic cam function
Freely programmable interface: 16 inputs
Freely programmable interface: 16 outputs
Transmit/Tracyl function with cylindrical path milling
Configurable control outputs: 8
Integrated ARTIS process monitoring system
VPN teleservice capability
Configurable interface for hydraulic and pneumatic units
Universal ChipMaster chip breaking cycle
VirtualLine software

Cutting oil system required
UNICOOL-DP communication interface
Hinged belt chip conveyor
Chip conveyor discharge height: 570 mm
Chip conveyor discharge direction: left
Lift pump for coolant system
Coolant filtration system 50 Hz
Chip cart capacity: 100 liters
Preparation for central oil mist extraction

Automatic CO₂ fire suppression system
Optical fire detection
Thermal fire detection
CO₂ extinguisher tank and control unit

Hydraulic valve positions: 4
Compressed air connections: 3
Compressed air pressure: 6 bar

Nominal power: 63 kW
Connected load: 75 kVA
Nominal current: 108 A
Maximum fuse rating: 125 A
Mains voltage: 400 V
Frequency: 50 Hz
