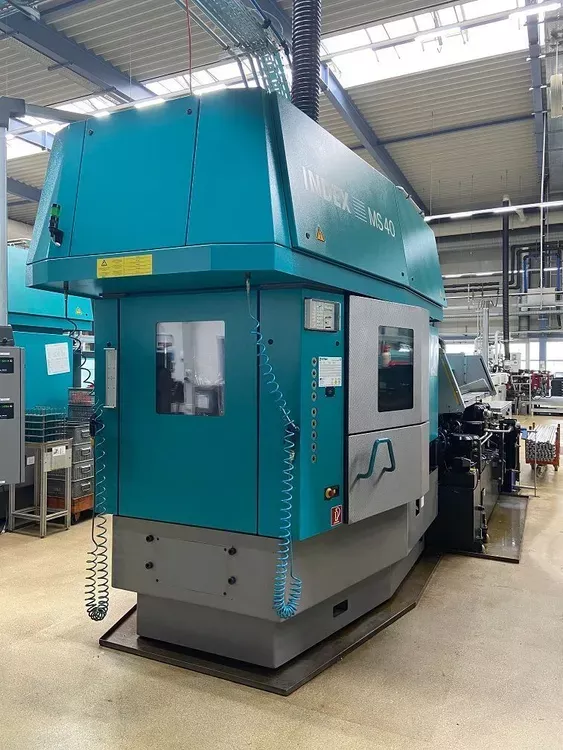

Index Siemens 840D Control (Dual NCU) Variable Speed MS-40-6 2 Axis

X / Z Axis Position 1.1 NC controlled
X / Z Axis Position 1.2 NC controlled
X / Z Axis Position 2.1 NC controlled
X / Z Axis Position 2.2 NC controlled
X / Y / Z Axis Position 3.1 NC controlled (Y ± 21 mm)
X / Z Axis Position 3.2 NC controlled
X / Z Axis Position 4.1 NC controlled
X / Z Axis Position 4.2 NC controlled
X / Z Axis Position 5.1 NC controlled
X / Z Axis Position 5.2 NC controlled
X / Z Axis Position 6.1 NC controlled
X / Z Axis Position 6.2 NC controlled
X Axis Position 6.3 NC controlled, Z fixed

Siemens 840D Control (Dual NCU)
Bar Capacity 40 mm
IEMCA SIR MS40/33/P magazine bar loader
Parts chute at spindle position 6
Workpiece conveyor at spindle position 6
Synchronization unit at spindle position 6.1
Parts ejector
Coolant feed preparation through counter spindle
Back-Working attachment at slide position 6.2
Up to 3 fixed toolholders
Electrical preparation for 2 auxiliary drives with electronic shaft (positions 1–3)
Electrical preparation for 2 auxiliary drives with electronic shaft (positions 4–6)
Compatible with auxiliary drives with incremental encoder (double module)
Hinge-belt chip conveyor (cross type), discharge height 1200 mm, front discharge with lift pump for filter unit
Coolant tank 800 L

Vacuum rotation filter 650 L capacity
Plate heat exchanger for coolant cooling
Heat exchanger pump 80 L/min @ 7 bar
Low-pressure pump 300 L/min @ 4 bar
High-pressure pump 55 L/min @ 40 bar
Automatic CO₂ fire extinguishing system with optical/thermal detection
Preparation for central exhaust system
Shut-off flap for central oil mist extraction
16/16 freely programmable I/O interface
Transmit / Tracyl function (milling cylindrical paths on OD and face)
Dual transmit function for Y-axis transformation
NC option: counter spindle / polygon turning with electronic shaft
Integrated ARTIS monitoring system based on torque, current, or power evaluation
Up to 4 channels monitoring 4 tools simultaneously at stations 1–3
Up to 4 channels monitoring 4 tools simultaneously at stations 4–6
