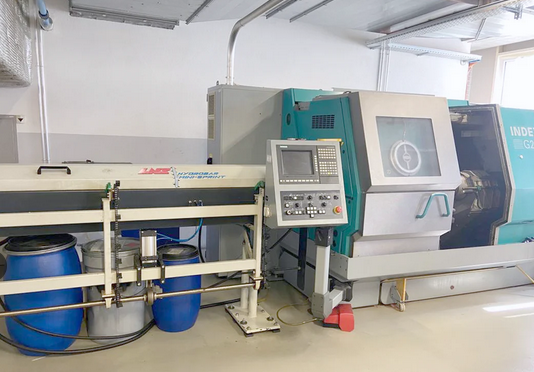

Index Siemens Sinumerik 840C 6300 rpm G 200 3 Axis

Control: Siemens Sinumerik 840C
X-Axis Travel Upper Turret: 155 mm
Y-Axis Travel Upper Turret: ±60 mm
Z-Axis Travel Upper Turret: 400 mm
X-Axis Travel Lower Turret: 105 mm
Z-Axis Travel Lower Turret: 400 mm
Rapid Traverse X: 23 m/min
Rapid Traverse Z: 45 m/min
Rapid Traverse Y: 8 m/min
C-Axis Resolution: 0.01°
Control: Siemens Sinumerik 840C
2 Spindles
2 Turrets
Turning Diameter: 200 mm
Turning Length: 400 mm
Spindle Hole: 42 mm
Main Spindle Bore: 60 mm
Main Spindle Speed: 0 – 6300 rpm
Main Spindle Power: 20 / 29 kW
Main Spindle Motor: 39 kW
Maximum Torque: 95 / 140 Nm
Back Spindle Speed: 6300 rpm
Back Spindle Bore: 42 mm
Back Spindle Diameter: 160 mm
Back Spindle Stroke: 445 mm
Back Spindle Power: 13 / 22 kW
Driven Tool Power: 5.5 kW
Driven Tools Turret 1: 14
Driven Tools Turret 2: 14
Turret Positions Upper: 14
Turret Positions Lower: 14
Indexing Time: 0.4 sec
Internal Cone DIN: 69880
Voltage: 400 V / 50 Hz / 3 Phase
Machine Weight: 4800 kg
Machine Dimensions: 2500 x 2400 x 2700 mm
3-Jaw Chuck
2 Collet Chucks
Collet Set
LNS MINI-SPRINT S2-42 Bar Feeder
Maximum Bar Length: 4000 mm
Tool Cabinet
RS232 Interface
Part Separating Device
Workpiece Conveyor
Chip Conveyor
Foot Pedal
Steel Holder Set
Toolholder Set
Rotating Viewing Window
