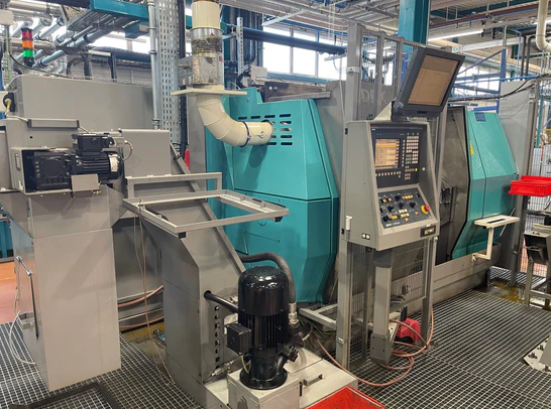

Index SIEMENS SINUMERIK 840D 5,000 t/min G 160 4 Axis

Axes Travel X: 31.5"
Axes Travel Y: 16.14"
Axes Travel Z: 20.08"
C Axis Resolution: 0.001°
Control: SIEMENS SINUMERIK 840D
Spindles: 2
Turrets/Revolvers: 3
Turret 1 Positions: 10
Turret 2 Positions: 10
Lower Turret Head Positions: 10
Spindle Nose: VDI 25
Lower Turret Head Spindle Speeds: 6,000 t/min
Lower Turret Head Driven Tool Power: 8 kW
Main Spindle Speeds: Stepless 0–5,000 t/min
Main Spindle Power: 27 kW
Voltage: 3x400 V 50 Hz
Total Power Required: 43 kW
Swing Over Bed: 200 mm
Machine Weight: 7,500 kg
Machine Dimensions Length: 3,200 mm
Machine Dimensions Width: 2,100 mm
Machine Dimensions Height: 2,100 mm
Chip Conveyor
Foot Pedal
