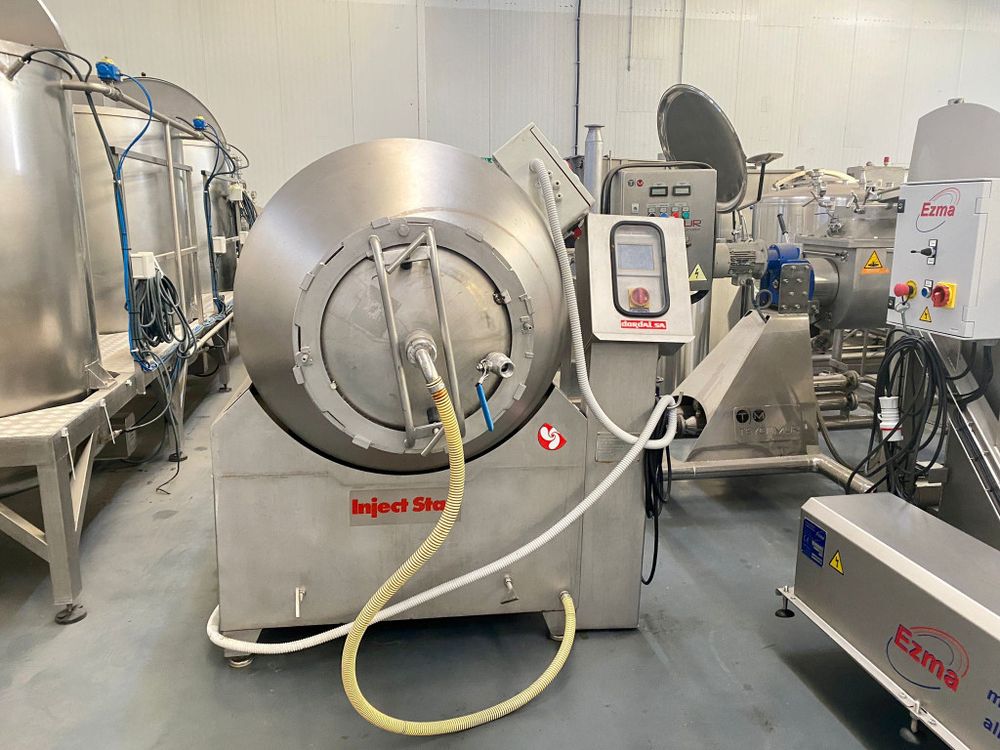

Inject Star ES1100 Vacuum Tumbler

Inject Star ES-1100 Vacuum Tumbler

Width 1540 mm
Height 1800 mm
Length 2150 mm
Weight 750 Kg
Volts (v) 3 220 / 380 V / 50 Hz
Power (hp) 2,2 kW

This machine is designed for massaging meat with and without bones, using a special baffle.
The product is moved across the special baffle to provide efficient protein activation, and massaging in a rotating, sliding, and slipping movement.
Drum volume: 1100 l
Optimal loading: 500-700 kg
Drum rotating speed: 1-11 turnovers per minute
The system is driven by a frequency controlled motor via friction rollers.
The container is emptied by rotating it to the left.
Equipped with computer. Up to 99 production programs can be created and stored.
The programmable parameters are: massaging speed, massaging duration, direction of rotation, processing time, rest time, vacuum, ventilation, temperature
Machine can provides massage under normal atmosphere, under permanent vacuum, impulse massage and alternating massage.

Max. program cycle duration: up to 100 hours
- massage: up to 100 minutes
- rest: up to 100 minutes
