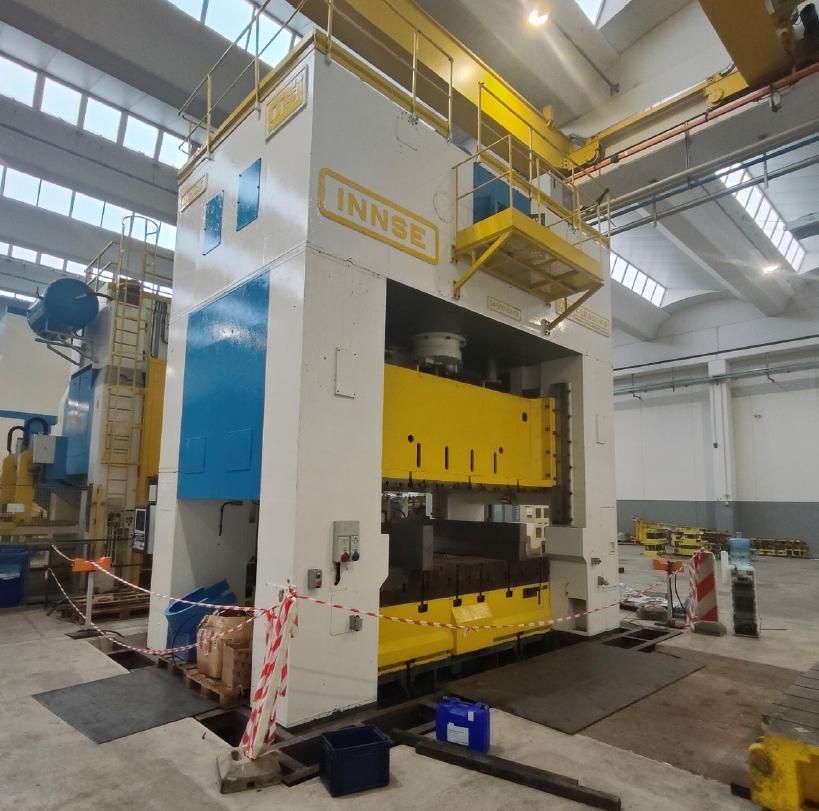

Clearing, Innse S4-500-3657-2134 500 ton

Press force: 500 ton
Eccentric kinematics type
Number of connecting rods: 4
Slide stroke: 250 mm
Slide adjustment: 406 mm
Continuous speed (variable): 18 – 55 spm
Shut height from top of bolster: 988 mm
Slide dimensions (L-R × F-B): 3657 mm × 2134 mm
Front moving bolster dimensions: 3657 mm × 2134 mm
Clearance between uprights (L-R): 3762 mm
Clearance between uprights (F-B): 1980 mm
Moving bolster height: 900 mm
Rated capacity at 20 mm: 500 ton
Press weight: 150000 kg
