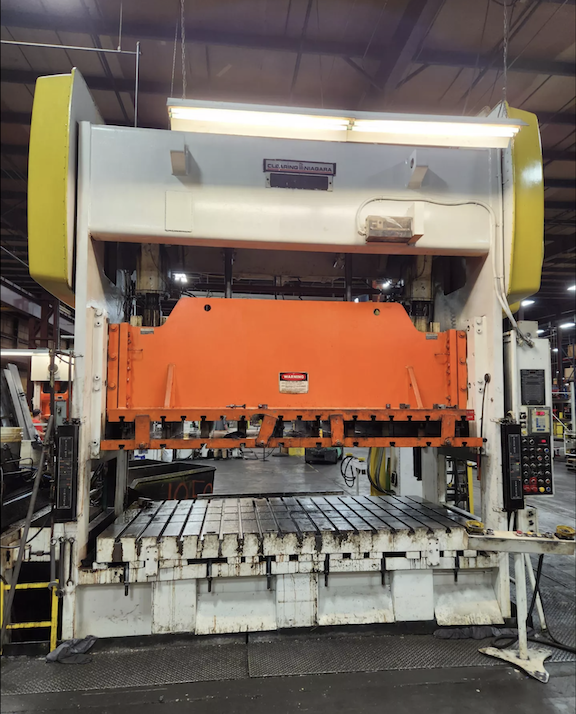

Clearing, Niagara PN 400 440 ton

Tonnage 440 ton
Stroke 10"
Speed 20–40 SPM
Shut height 37"
Slide adjustment 6"
Bed area 120" x 60"
Slide area 120" x 60"
Bolster plate 5" x 120" x 60"
Distance between uprights 120"
Distance floor to bed 32"
Window size 26" x 9"
Motor 40 HP
Power 480V / 3PH / 60Hz
Clutch air clutch and brake
Press control Link 501
Rigid fabricated steel frame
Reinforced box type bed and slide
Long gibbing
Nonmetallic laminated ways
Dual air counterbalances
Low inertia steel gearing
Twin end drive
Automatic lubrication
Automatic flywheel brake
Machine dimensions approx. 177" x 205" x 101"
Machine weight approx. 98500 lbs
