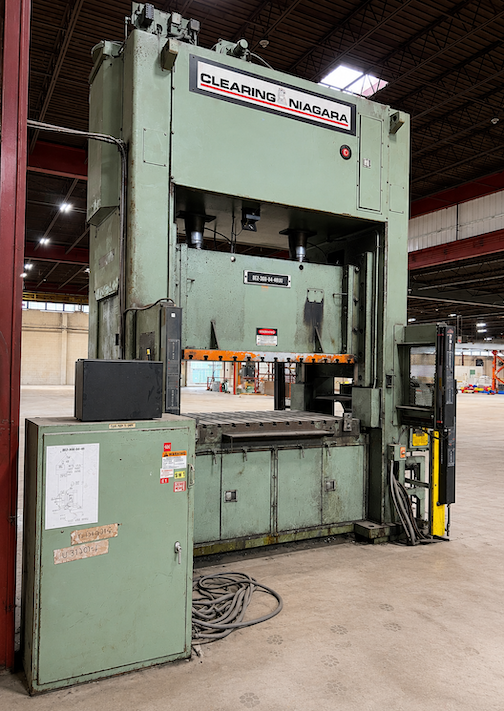

Clearing, Niagara SE2-300-84-48-UH 330 US Tons

Press Force: 330 US Tons
Stroke: 8 in
Max Shut Height to Bed: 32 in SDAU
Bed Area: 84 × 48 in
Speed: 35 - 70 SPM
Slide Adjustment: 11 in Motorized
Slide Area: 84 × 48 in T-Slotted
Bolster Plate: 7 × 84 × 48 in T-Slotted
Distance Between Uprights: 86 in
Distance Floor to Bed: 40 in
Window Size: 32 × 20 in
Low Inertia Independent Air Clutch and Brake
Electric Motor: 50 HP
Motor Speed: 1750 rpm
Voltage: 480V
Omnilink 806 Press Control
Unitized One-Piece Deflection-Resisting Steel Frame
Hydraulic Overload Protection
Eight-Point Square Gibs with Nonmetallic Liners
Circulating Oil Lubrication
Approx. Dimensions: 205 × 135 × 82 in
Approx. Weight: 76000 lbs
