INOXDUBRA BorisBrew 25 HL Brewhouse

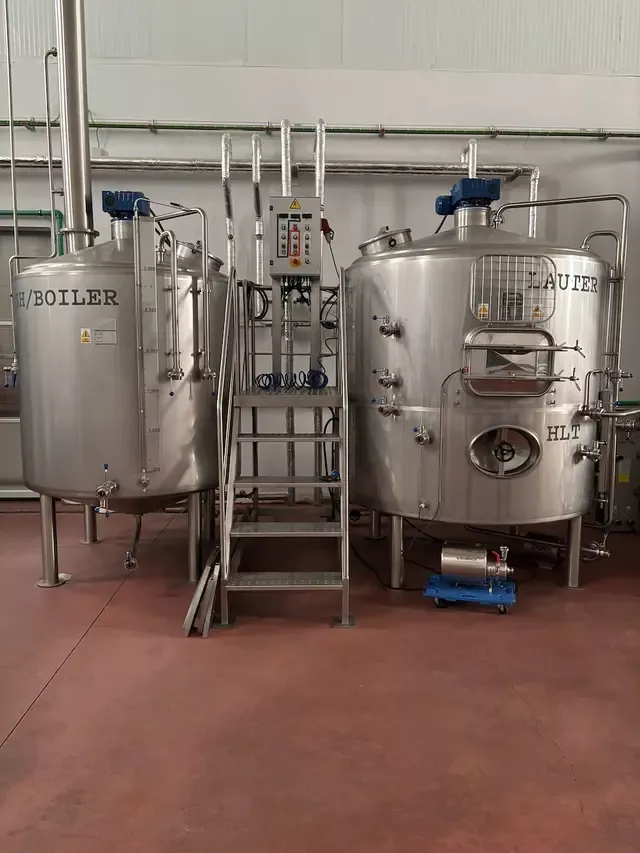

Brewhouse – Inoxdubra BorisBrew 25 HL (2019)
Mash/Lauter tun: 3,300 L, 2–3 bar
Whirlpool/Hot liquor tank: 3,500 L and 2,500 L vessels
Material: AISI 304 stainless steel
Steam-heated, V-shaped lauter filter rods, insulated design
Automated step mashing control with independent agitator inverters
Steam boiler – Sogecal NCK-30.8 (2019), 300 kg/h, diesel-powered, incl. condensate and sludge tanks
Heat exchanger – TDF Funke FP 22-75-1-NH (2019), 5,000 L/h, dual circuit (wort/water)
Cooling tanks – 2x Serap (1995), 3,000 L each, self-contained glycol cooling system
Fermenters – 3x Inoxdubra (2019), conical, isobaric, 2x 2,500–2,800 L, 1x 5,000 L, up to 3 bar

Bottling & Packaging
Filler – Schilpp Contibloc 20/5 (1974), 20 valves, 5 crown cappers (26 mm), up to 4,000 bph (0.33 L bottles)
Labeller – Enos Euro C5000 (2019), up to 5,000 bph, suitable for bottles and cans
Case sealer – Robopac Robotape 50 M (2004), top/bottom sealing
Forklift – Nissan S01 D 16 U (1991), 1.5 t capacity, 4.5 m lift height

Filtration, Water & Air Systems
Filtration skid – Cespedes 3-stage (2018), 5/3/1 μm filters + cleaning water circuit
Dechlorination filter – Pentair DAQ Magnum (2019), 6,000 L/h, activated carbon
Air compressor – Kaeser SM 13 (2019), rotary screw, 7.5 kW, with 500 L tank

Milling & Pumps
Grain mill – Skiold Bemvig RS280 (2019), 5.5 kW, 1,000 kg/h
Pumps – Bominox Sanix-01 (2019) and Simplex-MS (2019), 2.2 kW each; Inoxpa RV 65 (2022) helical impeller pump, 0.75 kW

Additional Accessories
Stainless steel piping, hoses, and Tri-Clamp fittings
Hop cannon for dry hopping
20 L pilot brewing kit
Draft beer columns (4- and 2-tap) with cooling units
Stainless steel tables and bar equipment
Dishwasher, glass washer, fridge/freezer
Keg couplers (KeyKeg, Type A)
