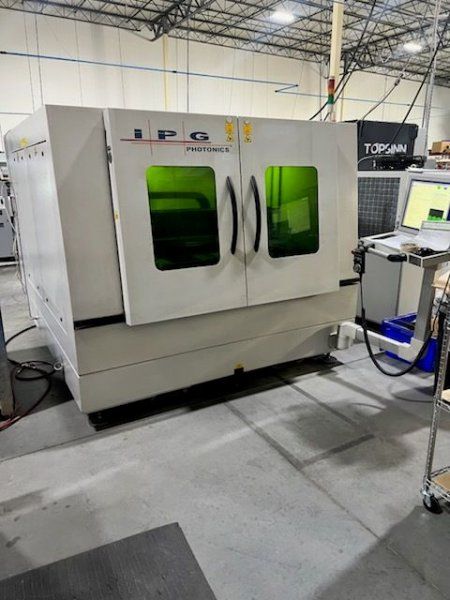

IPG Photonics 4000 WATT FIBER LASER CUBE CNC G-Code Compliant HMI Control
Ref :
2796694-3-MT
Condition :
Used
Manufacturer :
IPG Photonics
Model :
4000 WATT FIBER LASER CUBE
Controller :
CNC G-Code Compliant HMI Control
Year(s) :
2021
Quantity :
1
Location :
Seller or machines location:
AMERICA North (USA-Canada-Mexico)
AMERICA North (USA-Canada-Mexico)
Laser Power: 4000-Watts
Working Range
X: 49.2"
Y: 49.2"
Z: 2.9"
Maximum Cutting Speed: 2362 in/min
Positioning Accuracy: 25 m (0.001")
Positioning Repeatability: < 10 m (0.0004")
Materials: Stainless/Mild Steel, Aluminum, Brass, Copper, Laminated Foils
System Components: Linear Motors in X & Y, Ball Screw in Z
Frame: Granite Block
Electrical Information
Supply: 208-230VAC
Phase: 3 Phase+PE
Frequency: 50/60Hz
SCCR: 10kVA
Full Load Current: 24FLA
Maximum Breaker Size: 30A
Equipped With
CNC G-Code Compliant HMI Control
