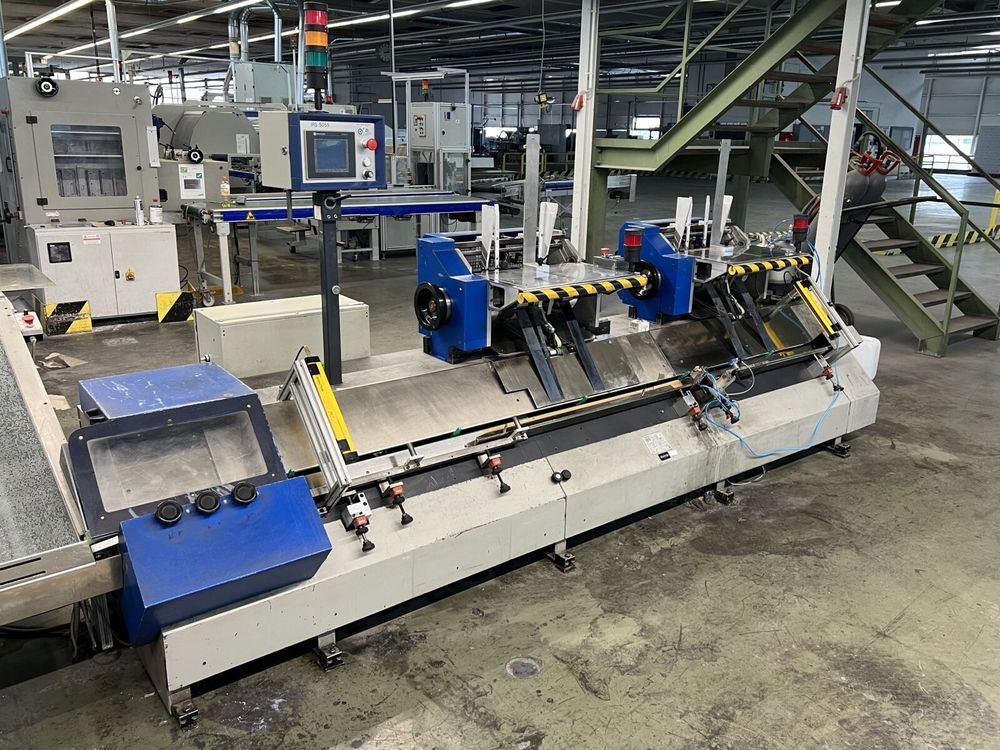

IRS 5055

MBT, IRS 5055
Sheet feeder:
Two drum feeders with gripper system
Belt conveyor channel for product conveying
Surface with rice paper structure to protect the product
Front stop made of aluminum
Side guides with sorting screws for sheet positioning
Screw ejector for precise bow positioning

Sheet control system:
Double sheet inspection using mechanical thickness measurement
Misaligned bow detection using photocell
Photocell-controlled activation of the second feeder and glue injection timing

Glue unit:
Hot melt or cold glue application (configurable)
Glue injector with digital keyboard setting

Delivery:
Double roller press station for optimal adhesion
Inclined conveyor belt for shingled product stacking at the exit

Control system:
SPS control unit
Touchscreen control panel
Safety system with light barriers

Technical data:
Min. Format 100 × 150 mm
Max. Format 320 × 550 mm
Max. sheet thickness 5 mm
Maximum mechanical speed 6,000 cycles/hour
