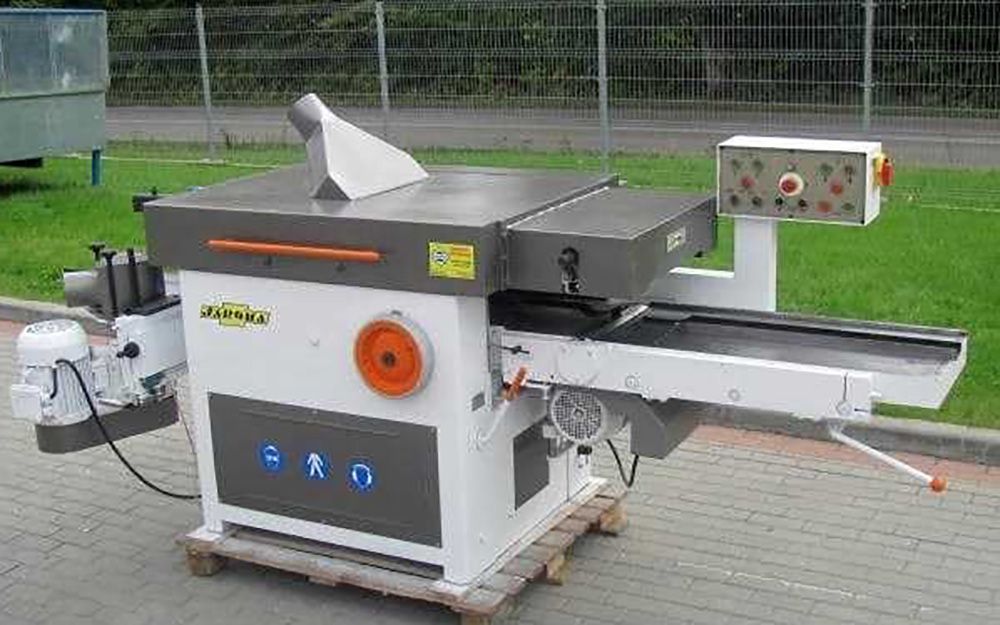

Jaroma DSBA-40

Working width: 400mm (for double-sided planing)
4-knife shafts
Two feed speeds: 6/12m/min
2x6kW horizontal machining motors
2x4kW vertical machining motors
Minimum workpiece length: 350mm
Spindle speed: 5000rpm
- Max planing width: 410mm
- Max planing height: 170mm

From above:
- Toothed feed shaft
- Ratchets
- Toothed, sequential feed shaft
- Toothed feed shaft with adjustable rollers
- Ratchets
- Toothed feed shaft
- Clamps
- 410mm, 4-knife, 4kW planing shaft
- Clamps
- Two smooth, metal feed shafts
- Feed shaft with rollers rubber (7 rollers)
- Bottom pressure bar:
- Infeed table
- 410mm, 4-knife planing shaft, 4kW
- 3 sliding rollers
- Rear side pressure:
- 2 side spindles: 1) vertical right 120mm, 4kW 2) vertical left 120mm, 4kW
- Spindle diameter: 30mm
- Adjustable spindles, right/left, up/down
- Electric table lift
- 0.75kW table lift motor
- Adjustable rollers in the lower table
- 3 feed speeds: 0.7; 0.13; 0.19
- 1.1kW feed motor
- All motors with brakes
- Extraction port diameter: 4x120mm
- Dimensions (LxWxH): 3130x1200x1400mm
- Weight: 960kg
