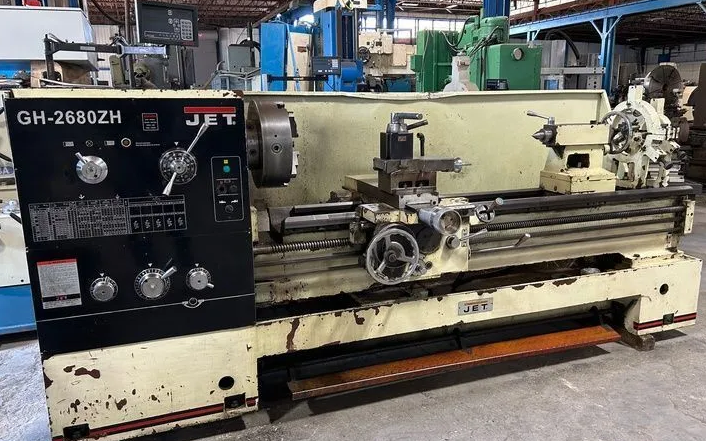

Jet Engine Lathe 1,600 RPM GH-2680ZH

Swing over bed 26 in
Swing in removable gap 34 in
Swing over cross slide 16.5 in
Distance between centers 80 in
Spindle speed range 36–1,600 RPM
Number of spindle speeds 12
Spindle bore 4.125 in
Spindle nose D1-8 camlock
Spindle motor power 10 HP
Longitudinal feed range 0.0023–0.0937 in/rev
Cross feed range 0.0010–0.0404 in/rev
Inch threading range 2–30 TPI
Metric threading range 1–14 mm
Tailstock spindle taper Morse #5
Tailstock spindle travel 6 in
Bed width 16 in
Two-axis digital readout
Removable gap bed
Inch threading capability
Metric threading capability
Hardened bed ways
Ground bed ways
Taper turning attachment
3-jaw chuck
Quick-change toolpost
Tool holders
Two steady rests
Threading dial
Live tailstock center
Foot brake
Self-contained coolant system
Rear splash guard
Overall dimensions 138 × 43 × 57 in
Machine weight 8,500 lb
