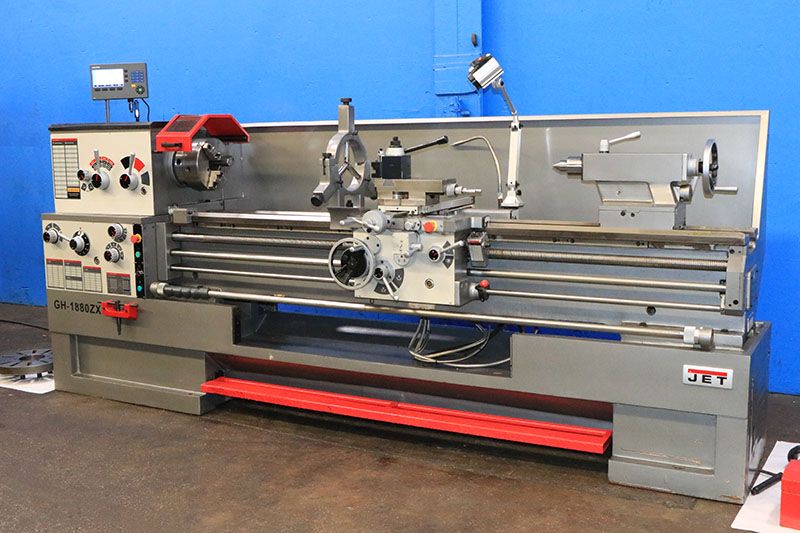

Jet Engine Lathe 1,800 RPM GH1860ZX

Swing over bed: 18"
Swing over gap: 27"
Swing over cross slide: 11"
Distance between centers: 80"
Spindle hole: 3-1/8"
Spindle nose, Camlock, size: D1-8"
Width of bed: 13-1/8"
Spindle speeds (12): 25 - 1,800 RPM
Feed changes, longitudinal: 0.0015 - 0.0913 IPR
Feed changes, cross: 0.0006 - 0.0365 IPR
Threads, inch (61): 1-5/8 - 72 TPI
Threads, metric (24): 0.5 - 20 mm
Tailstock spindle center: #5 Morse Taper
Tailstock spindle travel: 5"
Approximate dimensions LxWxH: 136" x 44" x 66"
Approximate weight: 6,500 lbs
ACU-RITE two-axis digital readout
Removable gap bed
Inch and metric threading capability
Hardened and ground bed ways
10" three jaw chuck
Faceplate
Quick change toolpost
7-3/4" capacity roller type steady rest
Follow rest
Threading dial
Center for tailstock
Jacobs drill chuck for tailstock
Foot brake
Self-contained coolant system with full-length rear splash guard
7-1/2 HP spindle drive motor
