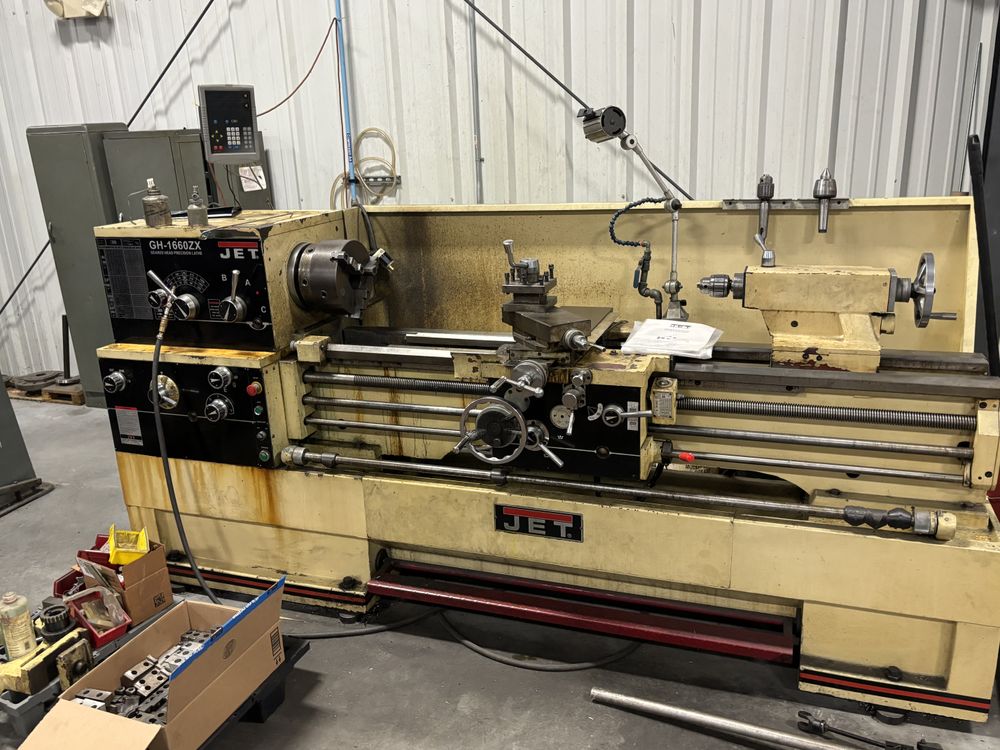

Jet Engine Lathe 1800 RPM (12 steps) GH1660ZX

Swing Over Bed 14"
Swing Over Gap 25.875"
Swing Over Cross Slide 10"
Distance Between Centers 40"
Spindle Hole 3.125"
Bed Width 13.375"

Spindle Speed Range 25–1800 RPM (12 steps)
Longitudinal Feed Range 0.0015–0.0913 IPR (122)
Cross Feed Range 0.0006–0.0365 IPR (122)
Inch Threading Range 1–5/8 to 72 TPI (61)
Metric Threading Range 0.5–20 mm (24)

Tailstock Spindle Taper #4 MT
Tailstock Spindle Travel 5"

Approximate Weight 5,800 lb
Dimensions 116" x 40" x 48"
7.5 HP Spindle Motor

Newall C80 2-axis digital readout
Removable gap bed
Inch and metric threading capability
Hardened and ground bed ways
12" 3-jaw chuck
Steady rest
5C lever-type collet closer
4-way turret toolpost
Tailstock drill chuck
Live center
Threading dial
Micrometer carriage stop
Multiple position carriage stop
Foot brake
Self-contained coolant system with full splash guard
