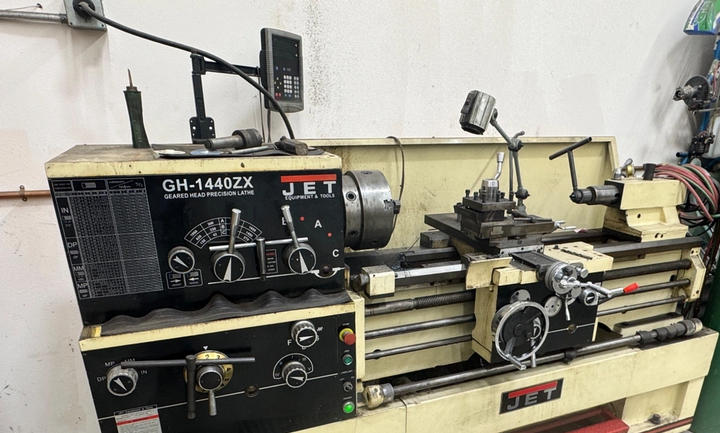

Jet Engine Lathe 1800 RPM GH-1440ZX

Swing Over Bed: 14"
Swing Over Cross Slide: 7-5/8"
Swing Through Gap: 23-5/8"
Distance Between Centers: 40"
Spindle Bore: 3-1/8"
Spindle Speeds: 12 speeds, 42 to 1,800 RPM
Motor: 7.5 HP, 230/460V, 3-Phase
Spindle Mount: D1-8 cam lock
Tailstock Taper: 4 MT
Tailstock Travel: 5"
Inch Threads: 61 options, 1-5/8 to 72 TPI
Metric Threads: 24 options, 0.5 to 20 mm
Longitudinal Feeds: 0.002" - 0.067" IPR
Machine Weight: approx. 5,187 lbs
Steady Rest
Tailstock
2-Axis Digital Readout
Inch/Metric Threading Mode
