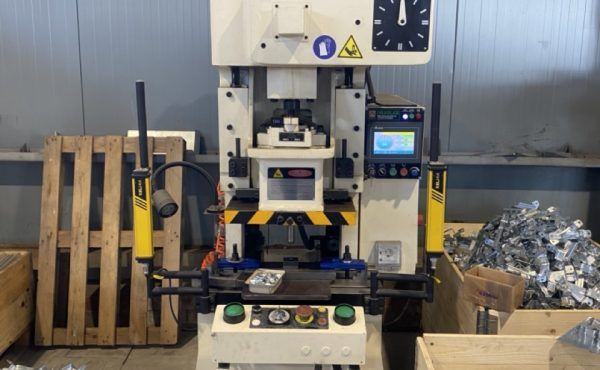

JINAOLAN ALP-25V - Metal Stamping Press 25 tons

Ref : 2752213-3-MT
Condition : Used
Manufacturer : -
Model : JINAOLAN ALP-25V - Metal Stamping Press
Pressure : 25 tons
Year(s) : 2021
Quantity : 1
Location : Seller or machines location:
EUROPE (Central and Eastern)

Nominal capacity: 25 tons
Stroke rate: 60–140 strokes/min
Stroke: 60 mm
Maximum die height: 200 mm
Height adjustment: 50 mm
Slide area: 470 × 245 mm
Table (bolster) area: 680 × 300 mm
Main motor: 2.2 × 4 kW
Maximum air pressure: 0.51 MPa
Maximum die weight: 0.30 ton
Control system: CNC (programmable control unit)
Safety system: Laser Safe dual-hand start operation

Features / Equipment
CNC-controlled eccentric press
Laser Safe operator protection system
Dual-hand safety start
Brand new, never used, originally packaged
High precision and repeatability
Solid structure with stable eccentric drive
Available in stock: 2 new presses and several used units
