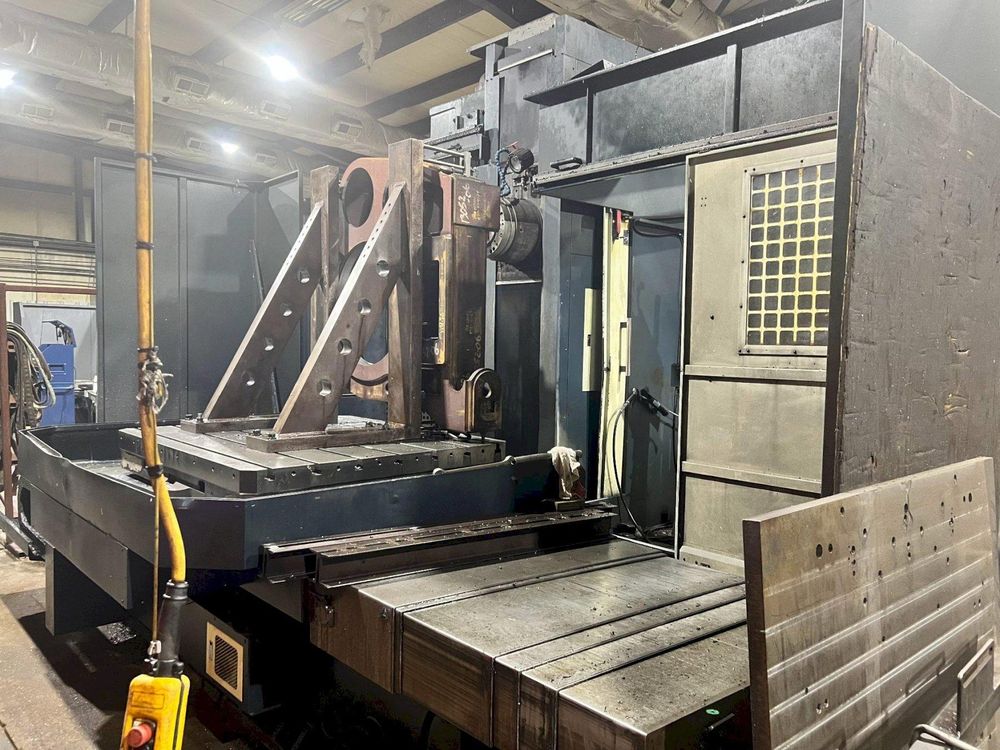

Johnford BMC-110 4.3″ (110 mm) 3,000 RPM

X-axis travel 78.7″ (2000 mm)
Y-axis travel 70.9″ (1800 mm)
Z-axis travel 63.0″ (1600 mm)
W-axis travel 21.7″ (550 mm)
B-axis table indexing 0.001 degree
Table size 55.1″ x 63.0″
Table load 15,432 lbs
Spindle diameter 4.3″ (110 mm)
Spindle speed 5 – 3,000 RPM
Spindle taper Cat 50
Auto tool changer 60 tool capacity
Max tool weight 55 lbs
Spindle nose to table 21.6″ – 84.6″
Spindle center to table 0 – 70.9″
X/Y/Z cutting feed rate 3.94 IPS
X/Y/Z rapid rate 7.87 IPS
B-axis rotation speed 4 RPM
Fanuc Series 21i-Model CNC control
Through spindle coolant
Full 4th axis (B-axis) table rotation
Chip conveyor
Approx dimensions (L×W×H) 284″ x 246″ x 151″
Approx weight 59,500 lbs
