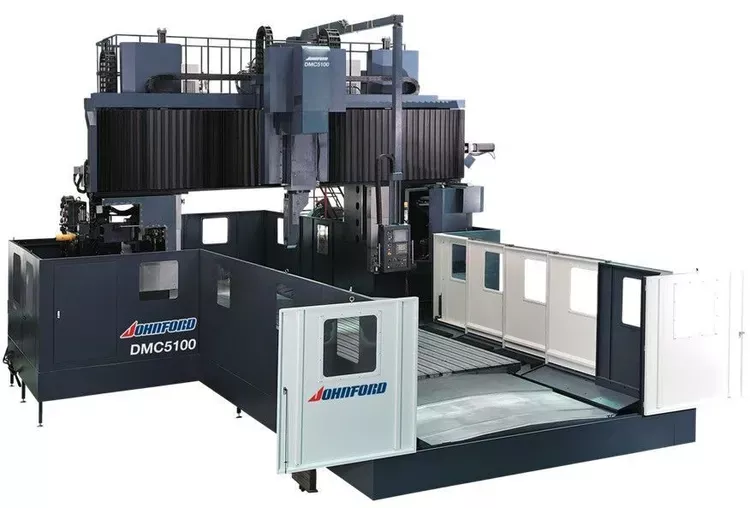

Johnford DMC 5100H + 5F 10000 rpm

9690
Price:


X travel 200.8"
Y travel 141.7"
Z travel 42"
W travel 39.4"

Table to spindle (vertical) 1.97" min / 83.3" max
Table to spindle (horizontal) AC-5: 19.13" min / 100.5" max
Table to spindle (horizontal) AC-4: 14.0" min / 95.5" max
Y axis distance between spindle (horizontal) AC-5: 109" / AC-4: 117.3"
X axis distance between spindle (horizontal) AC-5: 166.5" / AC-4: 177"
Distance between columns 110"

A axis swiveling angle ±110°
A axis max swiveling speed 360°/sec
A axis positioning accuracy 0.002°
A axis max motor torque 1475 ft-lbs (AC-5)
A axis braking torque 5900 ft-lbs (AC-5)
A axis max motor torque 907 ft-lbs (AC-4)
A axis braking torque 2950 ft-lbs (AC-4)
C axis swiveling angle ±200°
C axis max swiveling speed 360°/sec
C axis positioning accuracy 0.002°
C axis max motor torque 1475 ft-lbs (AC-5)
C axis braking torque 5900 ft-lbs (AC-5)
C axis max motor torque 974 ft-lbs (AC-4)
C axis braking torque 2950 ft-lbs (AC-4)

Control Heidenhain iTNC-640 (MC7522)
Spindle motor 47 HP (AC-5)
Spindle torque 258 ft-lbs at 1000 RPM (AC-5)
Spindle taper HSK-100A (AC-5)
Spindle speed 0–10000 (AC-5)
Spindle motor 31 HP (AC-4)
Spindle torque 29 ft-lbs at 6000 RPM (AC-4)
Spindle taper HSK-63A (AC-4)
Spindle speed 0–20000 (AC-4)
Spindle bearings 110 mm ceramic (AC-5)
Spindle bearings 70 mm ceramic (AC-4)

ATC HSK-100A 40 tools (opt. 60, 80, 120)
Tool change time 8 sec (HSK-100A)
Max tool diameter 5.3" with adjacent, 7.8" without (HSK-100A)
Max tool weight 44 lbs (HSK-100A)
Max tool length 15.7" (HSK-100A)
ATC HSK-63A 40 tools (opt. 60, 80, 120)
Tool change time 8 sec (HSK-63A)
Max tool diameter 3" with adjacent, 4" without (HSK-63A)
Max tool weight 22 lbs (HSK-63A)
Max tool length 12.6" (HSK-63A)

X ballscrew diameter 3.15"
Y ballscrew diameter 2.5"
Z ballscrew diameter 1.97"
W ballscrew diameter 2.5" (dual)

Ballscrew type Class 3 double nut pre-loaded
Servo motors 9 HP (X, Y, Z, dual W)
Rapid traverse rate X 472 IPM
Rapid traverse rate Y 394 IPM
Rapid traverse rate Z 394 IPM
Rapid traverse rate W 78.8 IPM
Cutting feedrate XYZ 0.01–394 IPM

Positioning accuracy ±0.0003" full stroke
Repeatability ±0.0002"
Table size 204.7" × 80.7"
Table load capacity 33,000 lbs
Table T-slots 8 × 22 mm
Coolant tank 120 gallons
Machine weight 220,000 lbs estimated
Floor space 659" × 311" × 268"
Power supply 208/220 V, 3 Phase, 400 A
Air source 90 PSI

Flood coolant system with programmable air blast
Air blast for spindle
Auto lubrication with alarm
Chip conveyor
Halogen work lamp
Spindle cooler
Remote handwheel
Heat exchangers for control cabinets
Hydraulic counterbalance for headstock
Rigid tapping
Heidenhain linear scales in W (2)
