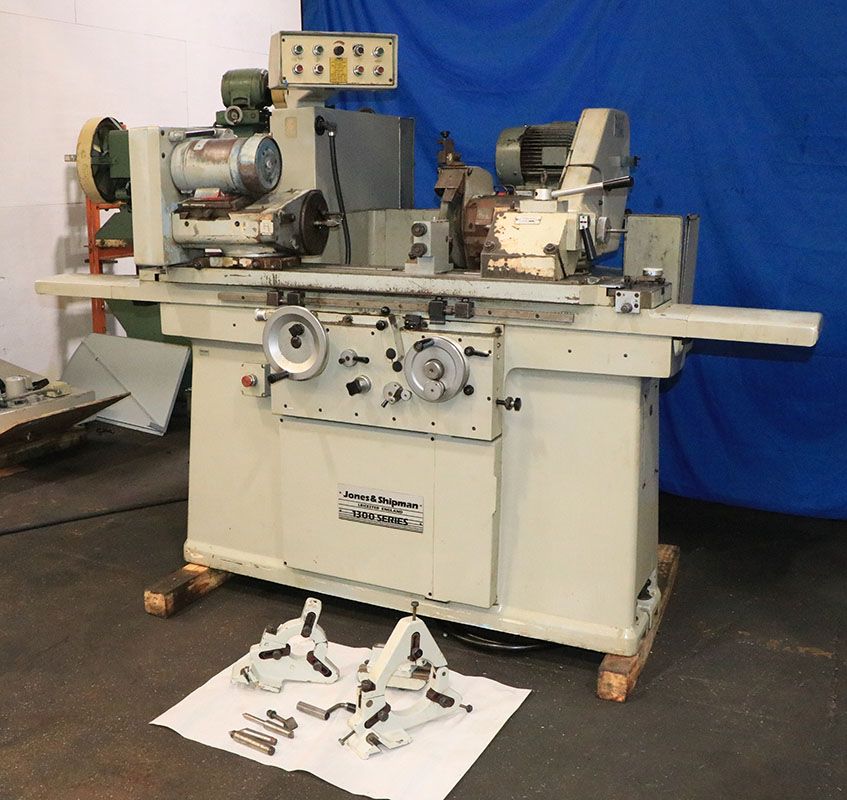

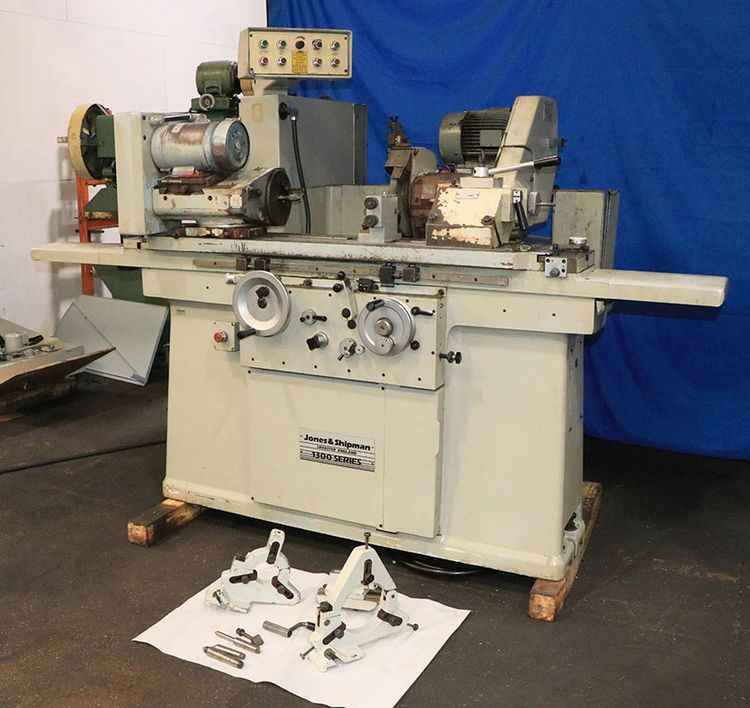

Jones & Shipman 1300-EIU

JONES & SHIPMAN 1300-EIU
1992

Swing over table: 10"
Distance between centers: 27"
Table swivel adjustment: 16° CCW, 18° CW
Hydraulic longitudinal table speed: 3 to 180 IPM
Manual traverse per handwheel revolution: 0.50"
Fine hand traverse knob graduation: 0.0005"
Cross feed handwheel graduation: 0.0002"
Fine feed lever depression: 0.0001"
Auto infeed at table reversal: 0.0001" to 0.0006"
Diameter reduction at reversal: 0.0002" to 0.0012"
Cross traverse of wheelhead: 8-1/16"
Topslide adjustment: 4-1/8"
Wheelhead swivel: 360°
Wheel size: 12" diameter x 1"-2" width x 5" bore
Wheel speeds: 2000, 2650 RPM
Wheelhead motor: 5.5 HP
Workhead spindle speeds (variable): 30 to 300 RPM
Workhead swivel: 15° CW, 90° CCW
Tailstock spindle taper: MT #3
Machine dimensions: 103" L-R x 58" x 69" H
Machine weight: 4,500 lbs

EIU wheelhead
Wheels mountable on both ends of spindle
Single swivel wheelhead
Variable speed workhead spindle
Manual one-shot lubrication pump
Power table traverse
Automatic infeed
Plunge infeed
Fine feed for infeed
Fine feed knob for table traverse
Dual live/dead workhead spindle
Shared drive for O.D. and I.D. wheels
Swing-around I.D. attachment with spindle
Two-point steady rest
Three-point steady rest (small)
Three-point steady rest (large)
Table-mounted dresser
Centers included
Dial indicator for table swivel adjustment
Coolant system
Wired for 3/60/575 volts, 15 amps
