Jorns TP200-RH-SL3-1300-CP100-6,4-hs Working length: 6400 mm
Ref :
2792244-3-AW
Condition :
Used
Manufacturer :
Jorns
Model :
TP200-RH-SL3-1300-CP100-6,4-hs
Sheet Size :
Working length: 6400 mm
Year(s) :
2014
Quantity :
1
Location :
Seller or machines location:
EUROPE (Western and Northern)
EUROPE (Western and Northern)
Max sheet thickness steel: 2.00 mm
Max sheet thickness aluminum: 3.00 mm
Max sheet thickness stainless steel: 1.25 mm
Throat depth: 1300 mm
Insertion depth: 1300 mm
Max bending angle: 140°
Back gauge max: 1125 mm
Back gauge min: 15 mm
Number of stands: 6
Total power requirement: 20 A
Weight: 9250 kg
Control: CP 100
Roll shear: SL3 / 3.0 mm

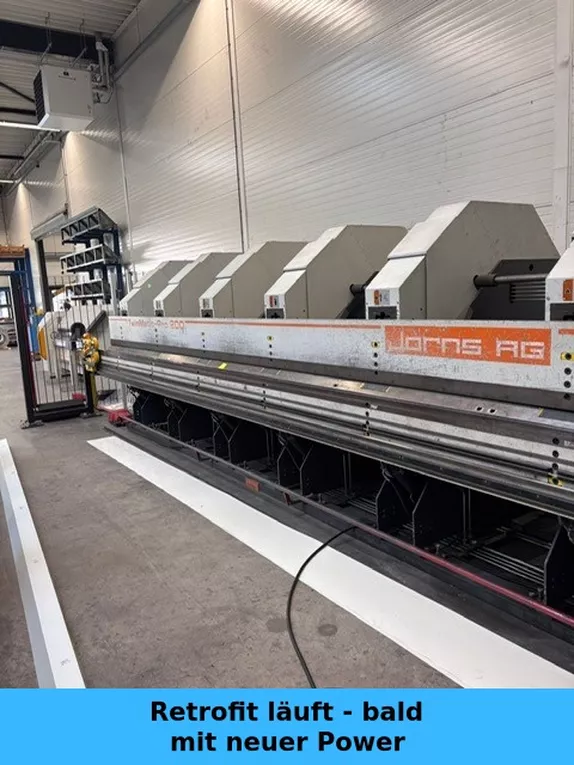

Double bending machine
TwinPro type
Integrated roll shear
Front support rail
Brush table
Automatic sheet thickness adjustment
Pneumatic clamping fingers
Machine refurbished, tested, cleaned
Test run performed
