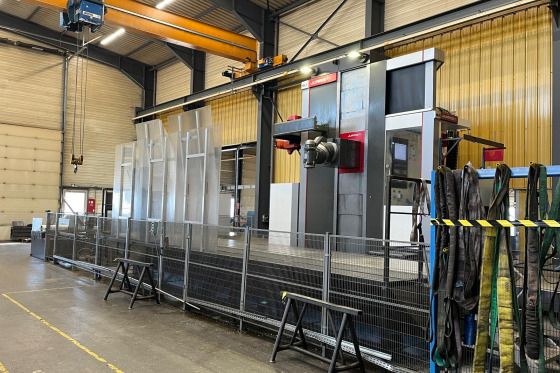

Juaristi ML-3 5000 RPM

X-Axis Travel 8000 mm
Y-Axis Travel 1300 mm
Z-Axis Travel 2500 mm
Table Length 10000 mm
Table Width 1250 mm
Power on Spindle 40 kW
Spindle Speeds 5000 RPM
Spindle Taper 40 ISO/BT/MK
Feed Rate X-Axis 35000 mm/min
Feed Rate Y-Axis 40000 mm/min
Feed Rate Z-Axis 40000 mm/min
Milling Head Auto-Index 0.001 x 0.001 Gr °
Travelling Column High performance, precision and machining power
Linear Guiding of RAM combined with Hydrostatic Guiding HDS
ACD2 Milling Head with 5000 RPM and 1400 Nm Torque
Aitek ATC Chain 60 Position with L=400 and 250 Diameter x 35 Kg
Filtration with IKZ 15 Bar
Chip Conveyor
BLUM 3D Measuring Probe
Wide Bed Linear Guided in X-Travel W=930 mm
Rotary Table Driver Prepared in E-Cabinet
Working Hours 3800 H
Machine Length 13500 mm
Machine Width 5800 mm
Machine Height 4500 mm
Machine Weight 45000 kg
