1/1

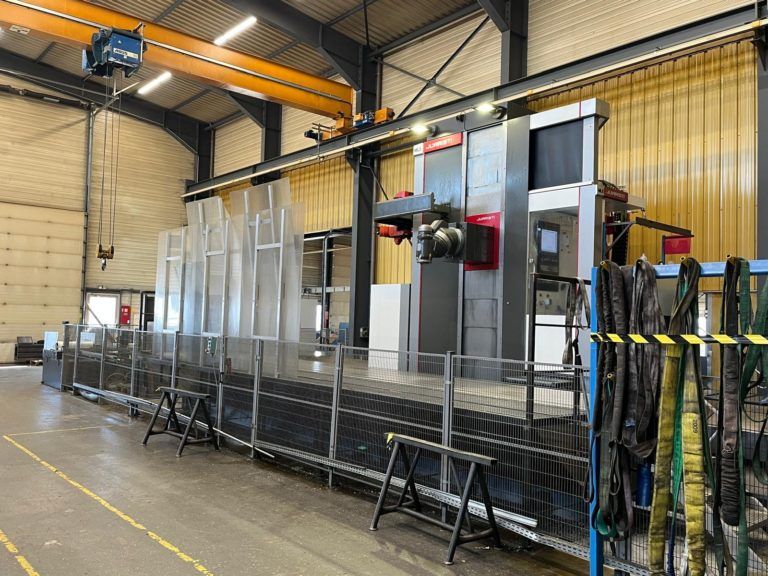

Juaristi ML-3 6000 rpm
Ref :
2785665-3-MT
Condition :
Used
Manufacturer :
Juaristi
Model :
ML-3
Spindle Speed :
6000 rpm
Year(s) :
2020
Quantity :
1
Location :
Seller or machines location:
EUROPE (Western and Northern)
EUROPE (Western and Northern)
X-axis travel: 8000 mm
Y-axis travel: 1300 mm
Z-axis travel: 2500 mm
Feed rate X-axis: 35000 mm/min
A-axis positioning: 0.001°
B-axis positioning: 0.001°
Control: Siemens 840D-SL CNC
Milling head: ACD2
Spindle speed: 6000 rpm
Spindle power: 40 kW
Spindle torque: 1400 Nm
Spindle taper: ISO 50
Tool changer: 60 positions
Tool length capacity: 400 mm
Tool diameter capacity: 250 mm
Tool weight capacity: 35 kg
Through spindle coolant: 15 bar
BLUM 3D measuring probe
Chip conveyor
Rotary table drive preparation
Linear guiding of RAM
Hydrostatic guiding system HDS
Wide bed linear guide: 930 mm
Table size: 10000 × 1250 mm
Machine dimensions: 13500 × 5800 × 4500 mm
Machine weight: 45000 kg
