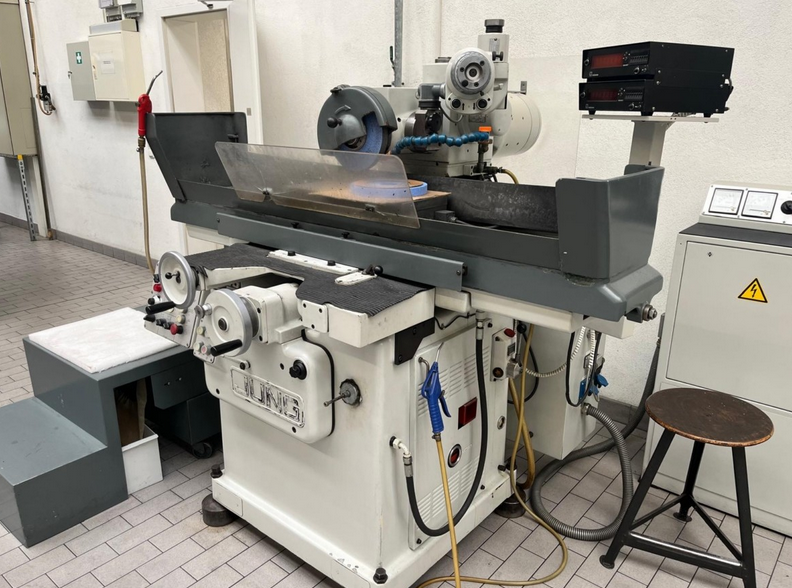

Jung HF 50 RD
Ref :
2747030-3-GO
Condition :
Used
Manufacturer :
Jung
Model :
HF 50 RD
Year(s) :
1978
Quantity :
1
Location :
Seller or machines location:
EUROPE (Western and Northern)
EUROPE (Western and Northern)
Grinding length 500 mm
Grinding width 200 mm
Workpiece height 300 mm
Distance table to spindle center max. 350 mm
Table adjustment longitudinal stepless 1–24 m/min
Table cross movement stepless 0.2–8 mm/Hub
Grinding wheel 225 x 20 x 51 mm
Total power requirement 4.7 kW
Weight 1.7 t
Dimensions 1.6 x 1.8 x 1.85 m
Electric 380 Volt
Electro-magnetic stretch plate
Automatic depth feed
Swing-away draw-off device
Separate switchgear cabinet 400 x 800 x 800 mm
Separate switchgear cabinet weight 160 kg
Holders
Automatic vertical feed
Rapid vertical feed
DC drive for grinding spindle continuously variable 1000–4000 rpm
Separate coolant unit
2-axis digital display (vertical and transverse)
Machine completely overhauled
