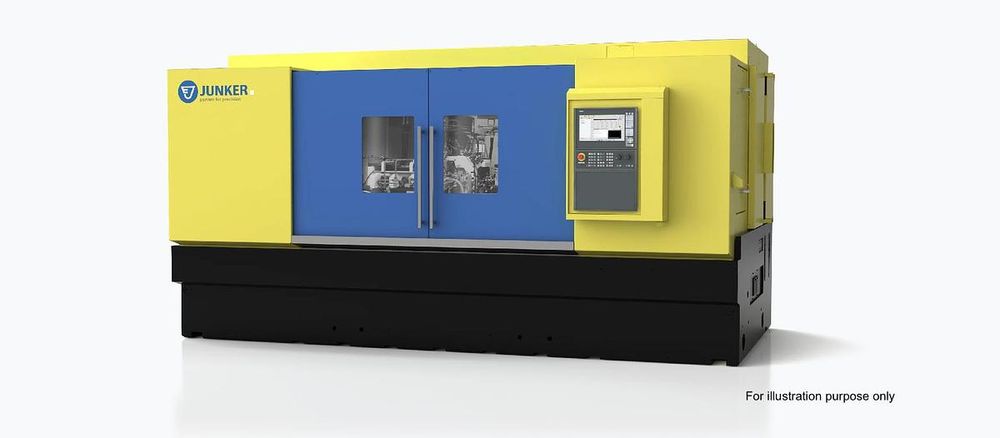

Junker Jucrank 6000/10-10 L

Ref : 2782301-3-GO

Condition : Used

Manufacturer : Junker

Model : Jucrank 6000/10-10 L

Year(s) : 2006

Quantity : 1

Location : Seller or machines location:
ASIA (South East)

Max swing diameter: 320 mm
Chucking length: 1700 mm
Max grinding length: 1500 mm
Max workpiece weight: 200 kg
Control system: Fanuc 16i
Max grinding wheel diameter: 700 mm
Grinding wheel width: 94 mm
Grinding wheel type: CBN
Grinding spindle power: 63 kW at 2000 rpm
Grinding spindle collar: 160 mm
Axis travel X-axis: 325 mm
Workhead spindle speed: 250 rpm
Measuring system: Marposs P7
Workpiece diameter measurement system: Fenar L
Wheel measuring system: Marposs T25
Coolant system: Emulsion type with high pressure pump, low pressure pump and return pump
Machine weight (approx): 26000 kg
Machine type: Crankshaft grinder
