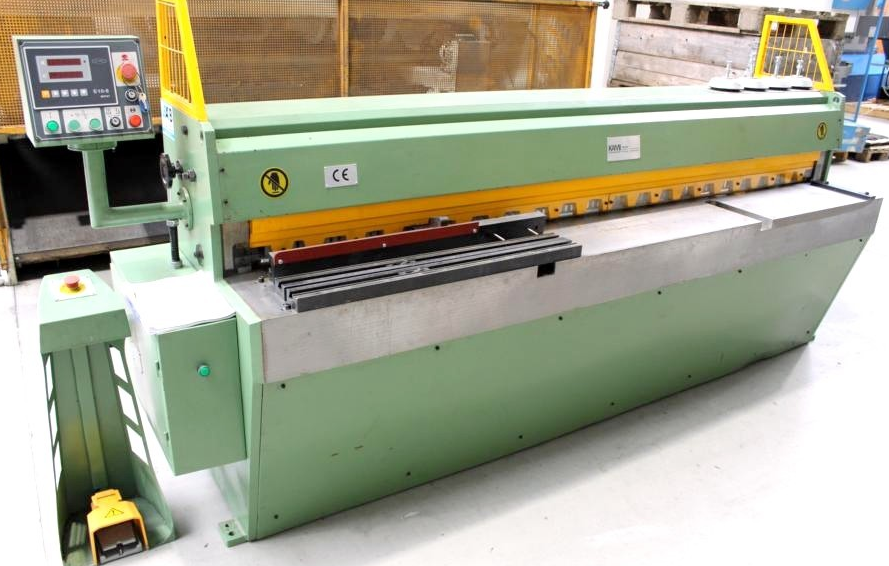

KAMI TKM 2500/3.5 E

Sheet width: 2520 mm
Plate thickness (steel): 3.2 mm
Cutting thickness max (aluminum): 5.0 mm
Cutting thickness max (stainless steel): 1.5 mm
Strokes per minute: 34
Cutting angle: 1°20′
Back gauge travel: max 1000 mm
Work height max: 800 mm
Control: ESTUN E10-S NC display
Total power requirement: 7.5 kW
Machine weight: approx. 2100 kg
Machine type: Mechanical swing-cut guillotine shear
Motorized swing-cut shear system
Torsion-free steel welded frame construction
Manual cutting gap adjustment
Motorized back gauge adjustment (electric control button)
Single and continuous stroke selector switch
Hold-down bar system
Front side stop
Front support arms (2 units)
Rear protective safety guards
Foot switch operation
Mechanical compact shear design
