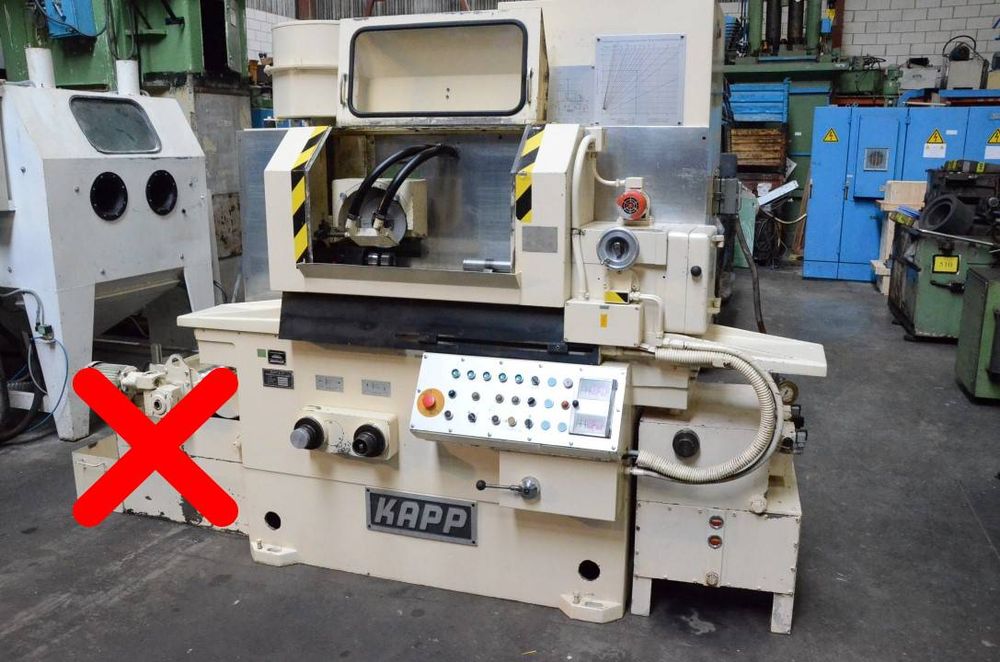

Kapp AS 204 GT 2850 rpm Gear Hob Grinder

Ref : 2804154-3-GO

Condition : Used

Manufacturer : Kapp

Model : AS 204 GT

Spindle Speed : 2850 rpm

Short Description : Gear Hob Grinder

Year(s) : -

Quantity : 1

Location : Seller or machines location:
EUROPE (Western and Northern)

Maximum Sharpening Diameter: 250 mm
Maximum Sharpening Length: 400 mm
Distance Between Centers: 635 mm
Center Height: 125 mm
Table Travel: 400 mm
Grinding Wheel Diameter: 250 mm
Grinding Wheel Vertical Travel: 175 mm
Grinding Wheel Shaft Radial Travel: +35 / -65 mm
Grinding Wheel Speeds: 1750 / 2150 / 2850 rpm
Grinding Wheel Motor Power: 3 kW
Longitudinal Table Speed: 30 - 1000 mm/min
Tool Holder Taper: ISO 40
Helix Pitch Angle Range: 0 - 45°
Total Power: 7.5 kVA
Dimensions: 2570 x 1100 x 1765 mm
Weight: 2500 kg
Milling Axes
Dividers
Grinding Wheels
